| Platform | Consumer |
| Architecture | GCN 2.0 |
| Generation | Volcanic Islands |
| Previous Gen | Sea Islands |
| Next generation | Pirate Islands |
| Interface | PCIe 3.0 x16 |
| Name | Hawaii |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 6200 million |
| Die Size | 438.0 mm² |
| Density | 14.2 /mm² |
| Cores | 2816 |
| Compute Units | 44 |
| TMUs | 176 |
| ROPs | 64 |
| Technology | GDDR5 |
| Size | 4 GB |
| Bus | 512 bit |
| Bandwidth | 320.0 GB/s |
| Speed | 5.0 Gbps |
| Base clock | 1000 MHz |
| Memory clock | 1250 MHz |
| 6-pin | 1 |
| 8-pin | 1 |
| TDP | 250 w |
| Recommended PSU | 750 w |

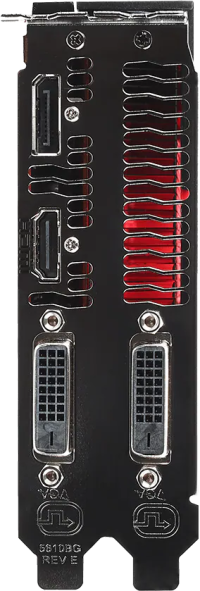

| DisplayPort | 1 1.2 |
| HDMI | 1 1.4a |
| DVI-D DL | 2 |
| Slots | 1.8 2 |
| Length | 276 mm |
| Height | 99 mm |
| Width | 35 mm |
| Weight | 1018 g |
| GPUs▲ | Base clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|
| 1080 MHz +8.0% | 2.8 | 302 mm | 131 mm | 55 mm | |
| 1050 MHz +5.0% | 2 | 295 mm | 152 mm | 38 mm | |
| 1030 MHz +3.0% | 1 | ||||
| 1000 MHz | 2 | 295 mm | 152 mm | 38 mm | |
| 1000 MHz | 1.8 | 276 mm | 99 mm | 35 mm |
