AMD Radeon R9 290X

AMD Radeon R9 290X

Radeon R9 290X is a consumer-grade GPU from AMD\'s Volcanic Islands series, built on the GCN 2.0 architecture using the Hawaii chip. Equipped with 4 GB of GDDR5 memory on a 512-bit bus, it delivers 320.0 GB/s of bandwidth at 5.0 Gbps.

Specifications

Information
PlatformConsumer
ArchitectureGCN 2.0
GenerationVolcanic Islands
Previous GenSea Islands
Next generationPirate Islands
InterfacePCIe 3.0 x16
Core
NameHawaii
FoundryTSMC
Process Node28 nm
Transistors6200 million
Die Size438.0 mm²
Density14.2 /mm²
GPU Core Config
Cores2816
Compute Units44
TMUs176
ROPs64
Memory
TechnologyGDDR5
Size4 GB
Bus512 bit
Bandwidth320.0 GB/s
Speed5.0 Gbps

Clocks
Base clock1000 MHz
Memory clock1250 MHz
Power
6-pin1
8-pin1

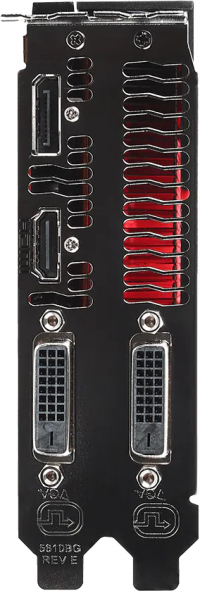

Display
DisplayPort1 1.2
HDMI1 1.4a
DVI2
Dimensions
Slots2

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲

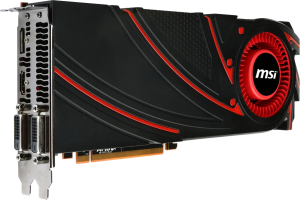

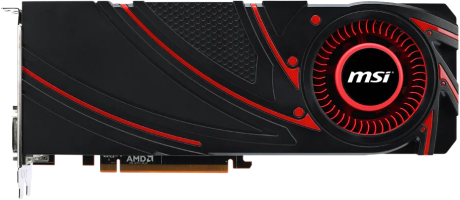

MSI Radeon R9 290X LIGHTNING			2.8	302 mm	131 mm	55 mm
Asus ROG Matrix R9 290X Platinum MATRIX-R9290X-P-4GD5			2

Platform	Consumer
Architecture	GCN 2.0
Generation	Volcanic Islands
Previous Gen	Sea Islands
Next generation	Pirate Islands
Interface	PCIe 3.0 x16

Name	Hawaii
Foundry	TSMC
Process Node	28 nm
Transistors	6200 million
Die Size	438.0 mm²
Density	14.2 /mm²

Technology	GDDR5
Size	4 GB
Bus	512 bit
Bandwidth	320.0 GB/s
Speed	5.0 Gbps

Cores	2816
Compute Units	44
TMUs	176
ROPs	64

Base clock	1000 MHz
Memory clock	1250 MHz

6-pin	1
8-pin	1

DisplayPort	1 1.2
HDMI	1 1.4a
DVI	2
