MSI GeForce RTX 5080 SUPRIM DRACO EPIC EDITION - Prices, specifications and information

GPUs

NVIDIA RTX 5080

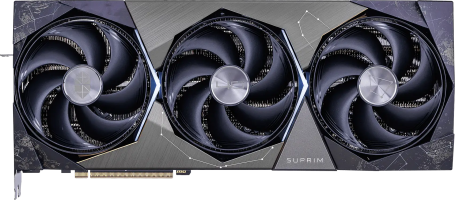

MSI GeForce RTX 5080 SUPRIM DRACO EPIC EDITION

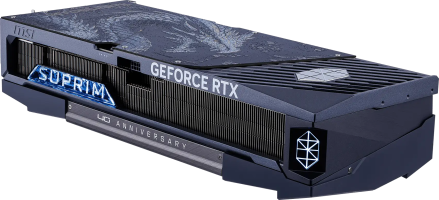

MSI GeForce RTX 5080 SUPRIM DRACO EPIC EDITION - Side

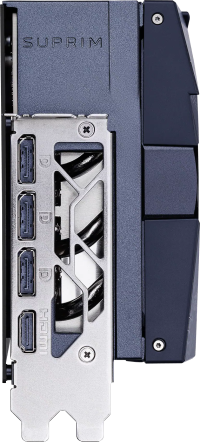

MSI GeForce RTX 5080 SUPRIM DRACO EPIC EDITION - Outputs

NVIDIA RTX 5080
MSI GeForce RTX 5080 SUPRIM DRACO EPIC EDITION
Specifications
Content
Models

Specifications

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x16
Max temperature88 C
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378.0 mm²
Density120.6 /mm²
GPU Core Config
Cores10752
TMUs336
ROPs112
SMs84
RT Cores84
Memory
TechnologyGDDR7
Size16 GB
Bus256 bit
Bandwidth960.0 GB/s
Speed30.0 Gbps

Clocks
Base clock2300 MHz
Boost clock2775 MHz 2617 MHz
Memory clock1875 MHz
Power
16-pin1
TDP360 w
Recommended PSU850 w
Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots3.8 2
Length359 mm 304 mm
Height150 mm 137 mm
Width76 mm 40 mm

NewsAugust 25, 2026

MSI is celebrating its 40th anniversary the way any hardware company would — with a limited-run flagship graphics card wrapped in mythology, gold accents, and a story about dragons guarding the stars.

Read the story

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Astral GeForce RTX 5080 Dhahab CORE OC Edition ROG-ASTRAL-RTX5080-O16G-DHAHAB-CORE	$3,479.00	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC HATSUNE MIKU EDITION ROG-ASTRAL-RTX5080-O16G-HATSUNE-MIKU-EDITION	$2,004.00	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC DOOM Edition ROG-ASTRAL-RTX5080-O16G-DOOM-EDITION	$2,279.00	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 WHITE OC Edition ROG-ASTRAL-RTX5080-O16G-WHITE	$2,149.99	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 WHITE Edition ROG-ASTRAL/ROG-ASTRAL-RTX5080-16G-WHITE		2640 MHz +0.9%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 ROG-ASTRAL-RTX5080-16G-GAMING		2640 MHz +0.9%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC Edition ROG-ASTRAL-RTX5080-O16G-GAMING	$1,994.45	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Zotac GeForce RTX 5080 AMP Extreme INFINITY ULTRA ZT-B50800BU-10P		2730 MHz +4.3%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5080 AMP Extreme INFINITY ZT-B50800B-10P	$1,428.00	2670 MHz +2.0%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5080 SOLID OC White Edition ZT-B50800Q-10P	$1,356.00 $1,672.00	2640 MHz +0.9%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID OC ZT-B50800J-10P		2640 MHz +0.9%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID ZT-B50800D-10P		2617 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID CORE OC ZT-B50800J2-10P	$1,331.00 $1,499.99	2640 MHz +0.9%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5080 SOLID CORE ZT-B50800D2-10P	$1,988.88	2617 MHz	2.8	303.5 mm	115.8 mm	55.7 mm
Gigabyte GeForce RTX 5080 XTREME WATERFORCE GV-N5080AORUSX W-16GD	$2,436.34	2805 MHz +7.2%	2	220 mm	130 mm	40 mm
Gigabyte GeForce RTX 5080 XTREME WATERFORCE WB GV-N5080AORUSX WB-16GD	$2,409.98	2805 MHz +7.2%	2	208 mm	156 mm	29 mm
Gigabyte GeForce RTX 5080 MASTER ICE GV-N5080AORUSM ICE-16GD	$1,831.00 $1,899.99	2805 MHz +7.2%	3.8	360 mm	150 mm	75 mm
Gigabyte AORUS GeForce RTX 5080 MASTER GV-N5080AORUS M-16GD	$1,799.99	2805 MHz +7.2%	3.8	360 mm	150 mm	75 mm
Gigabyte GeForce RTX 5080 GAMING OC GV-N5080GAMING OC-16GD	$1,449.99	2730 MHz +4.3%	3.5	340 mm	140 mm	70 mm
Gigabyte GeForce RTX 5080 GAMING GV-N5080GAMING-16GD		2617 MHz	3.5	340 mm	140 mm	70 mm
Gigabyte GeForce RTX 5080 AERO OC SFF GV-N5080AERO OC-16GD	$1,749.99	2730 MHz +4.3%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5080 WINDFORCE OC SFF GV-N5080WF3OC-16GD	$1,599.99	2670 MHz +2.0%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5080 WINDFORCE SFF GV-N5080WF3-16GD	$1,335.00	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5080 PROART-RTX5080-16G		2617 MHz	2.5	304 mm	126 mm	50 mm
Asus GeForce RTX 5080 Noctua OC Edition RTX5080-O16G-NOCTUA	$2,005.00 $2,173.99	2700 MHz +3.2%	4	385 mm	151 mm	80 mm
Asus ProArt GeForce RTX 5080 OC Edition PROART-RTX5080-O16G	$1,869.46	2700 MHz +3.2%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5080 TUF-RTX5080-16G-GAMING	$1,700.00	2617 MHz	3.6	348 mm	146 mm	72 mm
Asus TUF Gaming GeForce RTX 5080 OC Edition TUF-RTX5080-O16G-GAMING	$1,499.99	2700 MHz +3.2%	3.6	348 mm	146 mm	72 mm
Asus PRIME GeForce RTX 5080 PRIME-RTX5080-16G	$1,599.99	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5080 OC Edition PRIME-RTX5080-O16G	$1,669.99	2655 MHz +1.5%	2.5	304 mm	126 mm	50 mm
Zotac GeForce RTX 5080 APOCALYPSE OC ZT-B50800C-10P	$1,399.00	2730 MHz +4.3%	3.7	361 mm	138 mm	73 mm
MSI GeForce RTX 5080 EXPERT G5080-16E		2617 MHz	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5080 EXPERT OC G5080-16EC	$1,423.00	2715 MHz +3.7%	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5080 INSPIRE 3X G5080-16I3		2617 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5080 INSPIRE 3X OC G5080-16I3C	$1,448.00 $1,544.99	2640 MHz +0.9%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5080 SHADOW 3X G5080-16S3		2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 SHADOW 3X OC G5080-16S3C	$1,579.99	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 GAMING TRIO G5080-16GT		2617 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 GAMING TRIO OC G5080-16GTC	$1,799.99	2700 MHz +3.2%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 VENTUS 3X G5080-16V3		2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 VENTUS 3X OC PLUS G5080-16V3CP	$1,387.00 $1,669.99	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 GAMING TRIO WHITE G5080-16GTW		2617 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 GAMING TRIO OC WHITE G5080-16GTCW	$1,899.99	2700 MHz +3.2%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 VANGUARD OC G5080-16VGC		2700 MHz +3.2%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 VANGUARD SOC G5080-16VGS	$1,602.00	2730 MHz +4.3%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 VANGUARD SOC LAUNCH EDITION G5080-16VGSL		2730 MHz +4.3%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 SUPRIM OC G5080-16SPC		2700 MHz +3.2%	3.8	359 mm	150 mm	76 mm
MSI GeForce RTX 5080 SUPRIM SOC G5080-16SPS	$1,799.99	2745 MHz +4.9%	3.8	359 mm	15 mm	76 mm
MSI GeForce RTX 5080 SUPRIM LIQUID OC G5080-16SLC		2700 MHz +3.2%	2.6	280 mm	148 mm	51 mm
MSI GeForce RTX 5080 SUPRIM LIQUID SOC G5080-16SLS	$1,999.99	2745 MHz +4.9%	2.6	280 mm	148 mm	51 mm
MSI GeForce RTX 5080 VENTUS 3X WHITE G5080-16V3W		2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 VENTUS 3X OC WHITE G5080-16V3CW	$1,747.00	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
Palit GeForce RTX 5080 GamingPro V1 NE75080019T2-GB2031Y		2617 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro OC V1 NE75080S19T2-GB2031Y		2700 MHz +3.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro NE75080019T2-GB2031A		2617 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro OC NE75080S19T2-GB2031A		2700 MHz +3.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GameRock NE75080019T2-GB2030G		2617 MHz	3.6	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5080 GameRock OC NE75080T19T2-GB2030G		2730 MHz +4.3%	3.6	331.9 mm	150 mm	70.4 mm
PNY GeForce RTX 5080 Triple Fan GPU VCG508016TFXPB1	$1,570.00	2620 MHz +0.1%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 Overclocked Triple Fan GPU VCG508016TFXPB1-O	$1,525.00 $1,634.44	2730 MHz +4.3%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 ARGB EPIC-X RGB Triple Fan VCG508016TFXXPB1		2620 MHz +0.1%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 ARGB EPIC-X RGB Overclocked Triple Fan VCG508016TFXXPB1-O	$1,699.00 $1,799.99	2780 MHz +6.2%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 Slim Dual Fan Overclocked VCG508016DFSXPB1-O	$1,532.00	2730 MHz +4.3%	2	300 mm	150 mm	40 mm
PNY GeForce RTX 5080 Slim Dual Fan VCG508016DFSXPB1	$1,532.00	2617 MHz	2	300 mm	150 mm	40 mm
Gainward GeForce RTX 5080 Phoenix V1 NE75080019T2-GB2031C		2617 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix GS V1 NE75080S19T2-GB2031C		2700 MHz +3.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix NE75080019T2-GB2031X		2617 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix GS NE75080S19T2-GB2031X		2700 MHz +3.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phantom NE75080019T2-GB2030P		2617 MHz	3.5	331.9 mm	145.6 mm	69.9 mm
Gainward GeForce RTX 5080 Phantom GS NE75080T19T2-GB2030P		2730 MHz +4.3%	3.5	331.9 mm	145.6 mm	69.9 mm
MSI GeForce RTX 5080 VENTUS 3X OC G5080-16V3C	$1,649.99	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
NVIDIA GeForce RTX 5080 Founders Edition 900-1G144-2545-000	$1,799.99	2617 MHz	2	304 mm	137 mm	40 mm
Inno3D GeForce RTX 5080 X3 OC N50803-16D7X-17603930		2640 MHz +0.9%	2.5	300 mm	120 mm	50 mm
Inno3D GeForce RTX 5080 X3 N50803-16D7-176068N		2617 MHz	2.1	300 mm	116 mm	41 mm
Inno3D GeForce RTX 5080 X3 GAMING OC G50803-16D7X-17603930		2700 MHz +3.2%	2.5	300 mm	120 mm	50 mm
Inno3D GeForce RTX 5080 iCHILL X3 C50803-16D7X-176069H		2715 MHz +3.7%	3.7	334 mm	148 mm	73 mm
Asus PRIME GeForce RTX 5080 EVO PRIME-RTX5080-16G-EVO		2640 MHz +0.9%	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5080 EVO OC Edition PRIME-RTX5080-O16G-EVO	$1,662.20	2685 MHz +2.6%	2.5	304 mm	126 mm	50 mm
Inno3D GeForce RTX 5080 iCHILL FROSTBITE PRO C50803-16D7X-1760FBP		2617 MHz	1	187 mm	110 mm	20 mm
Inno3D GeForce RTX 5080 iCHILL FROSTBITE C50803-16D7X-1760FB		2715 MHz +3.7%	1.6	160 mm	140 mm	31 mm
Inno3D GeForce RTX 5080 X3 OC WHITE N50803-16D7X-17605211		2640 MHz +0.9%	2.5	300 mm	120 mm	50 mm
MSI GeForce RTX 5080 The Mandalorian and Grogu Edition OC G5080-16MGEC		2715 MHz +3.7%	2.5	338 mm	140 mm	50 mm
Asus TUF Gaming GeForce RTX 5080 BTF OC Edition TUF-RTX5080-016G-BTF-GAMING	$1,899.99	2730 MHz +4.3%	3.6	348 mm	146 mm	72 mm
Asus TUF Gaming GeForce RTX 5080 BTF Edition TUF-RTX5080-16G-BTF-GAMING		2640 MHz +0.9%	3.6	348 mm	146 mm	72 mm
MSI GeForce RTX 5080 INSPIRE 3X OC BLACK G5080-16I3CB		2655 MHz +1.5%	2.5	288 mm	112 mm	50 mm
Gigabyte AORUS GeForce RTX 5080 INFINITY GV-N5080AORUS IF-16GD	$1,899.99	2805 MHz +7.2%	3.3	330 mm	145 mm	65 mm
Gigabyte AORUS GeForce RTX 5080 INFINITY WOOD GV-N5080AORUSIF WD-16GD		2805 MHz +7.2%	3.3	330 mm	145 mm	65 mm
MSI GeForce RTX 5080 SUPRIM DRACO EPIC EDITION		2775 MHz +6.0%	3.8	359 mm	150 mm	76 mm

Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x16
Max temperature	88 C

Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378.0 mm²
Density	120.6 /mm²

Technology	GDDR7
Size	16 GB
Bus	256 bit
Bandwidth	960.0 GB/s
Speed	30.0 Gbps

Base clock	2300 MHz
Boost clock	2775 MHz 2617 MHz
Memory clock	1875 MHz

Slots	3.8 2
Length	359 mm 304 mm
Height	150 mm 137 mm
Width	76 mm 40 mm

Cores	10752
TMUs	336
ROPs	112
SMs	84
RT Cores	84

16-pin	1
TDP	360 w
Recommended PSU	850 w

DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3
