Name: Gigabyte GeForce RTX 5080 WINDFORCE OC V2 SFF
Brand: Gigabyte
SKU: GV-N5080WF3OCV2-16GD

GPUs

NVIDIA RTX 5080

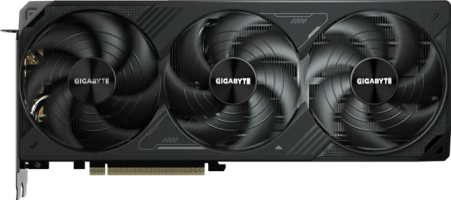

Gigabyte GeForce RTX 5080 WINDFORCE OC V2 SFF

Gigabyte GeForce RTX 5080 WINDFORCE OC V2 SFF - Side

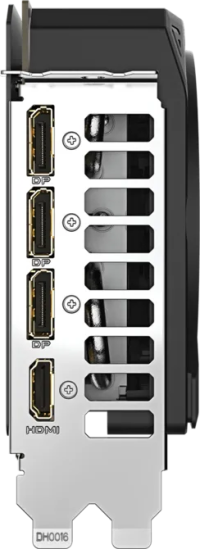

Gigabyte GeForce RTX 5080 WINDFORCE OC V2 SFF - Outputs

NVIDIA RTX 5080
Gigabyte GeForce RTX 5080 WINDFORCE OC V2 SFF
GV-N5080WF3OCV2-16GD
Specifications
Models
No reviews yet. Be the first to share your thoughts!
 Log in to write a review.

Specifications

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
InterfacePCIe 5.0 x16
Max temperature88 C
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378.0 mm²
Density120.6 /mm²
GPU Core Config
Cores10752
TMUs336
ROPs112
SMs84
RT Cores84
Memory
TechnologyGDDR7
Size16 GB
Bus256 bit
Bandwidth960.0 GB/s
Speed30.0 Gbps

Clocks
Base clock2300 MHz
Boost clock2670 MHz 2617 MHz
Memory clock1875 MHz
Power
16-pin1
TDP360 w
Recommended PSU850 w
Display
DisplayPort3 2.1
HDMI1 2.1
HDCP2.3
Dimensions
Slots2.5 2
Length304 mm
Height126 mm 137 mm
Width50 mm 40 mm

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Astral GeForce RTX 5080 Dhahab CORE OC Edition ROG-ASTRAL-RTX5080-O16G-DHAHAB-CORE		2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC HATSUNE MIKU EDITION ROG-ASTRAL-RTX5080-O16G-HATSUNE-MIKU-EDITION		2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC DOOM Edition ROG-ASTRAL-RTX5080-O16G-DOOM-EDITION		2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 WHITE OC Edition ROG-ASTRAL-RTX5080-O16G-WHITE		2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 WHITE Edition ROG-ASTRAL/ROG-ASTRAL-RTX5080-16G-WHITE		2640 MHz +0.9%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 ROG-ASTRAL-RTX5080-16G-GAMING	$2,899.00	2640 MHz +0.9%	3.8	357.6 mm	149.3 mm	76 mm
Asus ROG Astral GeForce RTX 5080 OC Edition ROG-ASTRAL-RTX5080-O16G-GAMING	$2,500.00	2760 MHz +5.5%	3.8	357.6 mm	149.3 mm	76 mm
Zotac GeForce RTX 5080 AMP Extreme INFINITY ULTRA ZT-B50800BU-10P		2730 MHz +4.3%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5080 AMP Extreme INFINITY ZT-B50800B-10P		2670 MHz +2.0%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5080 SOLID OC White Edition ZT-B50800Q-10P		2640 MHz +0.9%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID OC ZT-B50800J-10P	$2,514.99	2640 MHz +0.9%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID ZT-B50800D-10P		2617 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5080 SOLID CORE OC ZT-B50800J2-10P	$1,597.99	2640 MHz +0.9%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5080 SOLID CORE ZT-B50800D2-10P	$2,788.88	2617 MHz	2.8	303.5 mm	115.8 mm	55.7 mm
Gigabyte GeForce RTX 5080 XTREME WATERFORCE GV-N5080AORUSX W-16GD	$3,105.90	2805 MHz +7.2%	2	220 mm	130 mm	40 mm
Gigabyte GeForce RTX 5080 XTREME WATERFORCE WB GV-N5080AORUSX WB-16GD	$3,323.76	2805 MHz +7.2%	2	208 mm	156 mm	29 mm
Gigabyte GeForce RTX 5080 MASTER ICE GV-N5080AORUSM ICE-16GD	$2,700.00	2805 MHz +7.2%	3.8	360 mm	150 mm	75 mm
Gigabyte AORUS GeForce RTX 5080 MASTER GV-N5080AORUS M-16GD	$2,826.00	2805 MHz +7.2%	3.8	360 mm	150 mm	75 mm
Gigabyte GeForce RTX 5080 GAMING OC GV-N5080GAMING OC-16GD	$2,299.99	2730 MHz +4.3%	3.5	340 mm	140 mm	70 mm
Gigabyte GeForce RTX 5080 GAMING GV-N5080GAMING-16GD		2617 MHz	3.5	340 mm	140 mm	70 mm
Gigabyte GeForce RTX 5080 AERO OC SFF GV-N5080AERO OC-16GD	$2,299.99	2730 MHz +4.3%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5080 WINDFORCE OC SFF GV-N5080WF3OC-16GD	$2,299.99	2670 MHz +2.0%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5080 WINDFORCE SFF GV-N5080WF3-16GD		2617 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5080 PROART-RTX5080-16G		2617 MHz	2.5	304 mm	126 mm	50 mm
Asus GeForce RTX 5080 Noctua OC Edition RTX5080-O16G-NOCTUA	$3,599.00	2700 MHz +3.2%	4	385 mm	151 mm	80 mm
Asus ProArt GeForce RTX 5080 OC Edition PROART-RTX5080-O16G	$2,679.99	2700 MHz +3.2%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5080 TUF-RTX5080-16G-GAMING		2617 MHz	3.6	348 mm	146 mm	72 mm
Asus TUF Gaming GeForce RTX 5080 OC Edition TUF-RTX5080-O16G-GAMING	$2,399.99	2700 MHz +3.2%	3.6	348 mm	146 mm	72 mm
Asus PRIME GeForce RTX 5080 PRIME-RTX5080-16G	$2,349.99	2617 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5080 OC Edition PRIME-RTX5080-O16G	$2,618.00	2655 MHz +1.5%	2.5	304 mm	126 mm	50 mm
Zotac GeForce RTX 5080 APOCALYPSE OC ZT-B50800C-10P		2730 MHz +4.3%	3.7	361 mm	138 mm	73 mm
MSI GeForce RTX 5080 EXPERT G5080-16E		2617 MHz	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5080 EXPERT OC G5080-16EC		2715 MHz +3.7%	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5080 INSPIRE 3X G5080-16I3		2617 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5080 INSPIRE 3X OC G5080-16I3C		2640 MHz +0.9%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5080 SHADOW 3X G5080-16S3		2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 SHADOW 3X OC G5080-16S3C	$2,672.00	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 GAMING TRIO G5080-16GT		2617 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 GAMING TRIO OC G5080-16GTC	$2,499.99	2700 MHz +3.2%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 VENTUS 3X G5080-16V3		2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 VENTUS 3X OC PLUS G5080-16V3CP		2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 GAMING TRIO WHITE G5080-16GTW		2617 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 GAMING TRIO OC WHITE G5080-16GTCW		2700 MHz +3.2%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5080 VANGUARD OC G5080-16VGC		2700 MHz +3.2%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 VANGUARD SOC G5080-16VGS		2730 MHz +4.3%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 VANGUARD SOC LAUNCH EDITION G5080-16VGSL		2730 MHz +4.3%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5080 SUPRIM OC G5080-16SPC		2700 MHz +3.2%	3.8	359 mm	150 mm	76 mm
MSI GeForce RTX 5080 SUPRIM SOC G5080-16SPS		2745 MHz +4.9%	3.8	359 mm	15 mm	76 mm
MSI GeForce RTX 5080 SUPRIM LIQUID OC G5080-16SLC		2700 MHz +3.2%	2.6	280 mm	148 mm	51 mm
MSI GeForce RTX 5080 SUPRIM LIQUID SOC G5080-16SLS	$2,199.99 $2,735.00	2745 MHz +4.9%	2.6	280 mm	148 mm	51 mm
MSI GeForce RTX 5080 VENTUS 3X WHITE G5080-16V3W		2617 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 VENTUS 3X OC WHITE G5080-16V3CW		2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
Palit GeForce RTX 5080 GamingPro V1 NE75080019T2-GB2031Y		2617 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro OC V1 NE75080S19T2-GB2031Y		2700 MHz +3.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro NE75080019T2-GB2031A		2617 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GamingPro OC NE75080S19T2-GB2031A		2700 MHz +3.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5080 GameRock NE75080019T2-GB2030G		2617 MHz	3.6	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5080 GameRock OC NE75080T19T2-GB2030G		2730 MHz +4.3%	3.6	331.9 mm	150 mm	70.4 mm
PNY GeForce RTX 5080 Triple Fan GPU VCG508016TFXPB1		2620 MHz +0.1%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 Overclocked Triple Fan GPU VCG508016TFXPB1-O	$2,249.00	2730 MHz +4.3%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 ARGB EPIC-X RGB Triple Fan VCG508016TFXXPB1		2620 MHz +0.1%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 ARGB EPIC-X RGB Overclocked Triple Fan VCG508016TFXXPB1-O	$2,399.99	2780 MHz +6.2%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5080 Slim Dual Fan Overclocked VCG508016DFSXPB1-O		2730 MHz +4.3%	2	300 mm	150 mm	40 mm
PNY GeForce RTX 5080 Slim Dual Fan VCG508016DFSXPB1		2617 MHz	2	300 mm	150 mm	40 mm
Gainward GeForce RTX 5080 Phoenix V1 NE75080019T2-GB2031C		2617 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix GS V1 NE75080S19T2-GB2031C		2700 MHz +3.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix NE75080019T2-GB2031X		2617 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phoenix GS NE75080S19T2-GB2031X		2700 MHz +3.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5080 Phantom NE75080019T2-GB2030P		2617 MHz	3.5	331.9 mm	145.6 mm	69.9 mm
Gainward GeForce RTX 5080 Phantom GS NE75080T19T2-GB2030P		2730 MHz +4.3%	3.5	331.9 mm	145.6 mm	69.9 mm
MSI GeForce RTX 5080 VENTUS 3X OC G5080-16V3C	$2,599.00	2640 MHz +0.9%	2.5	303 mm	121 mm	49 mm
NVIDIA GeForce RTX 5080 Founders Edition 900-1G144-2545-000	$2,599.00	2617 MHz	2	304 mm	137 mm	40 mm
Inno3D GeForce RTX 5080 X3 OC N50803-16D7X-17603930		2640 MHz +0.9%	2.5	300 mm	120 mm	50 mm
Inno3D GeForce RTX 5080 X3 N50803-16D7-176068N		2617 MHz	2.1	300 mm	116 mm	41 mm
Inno3D GeForce RTX 5080 X3 GAMING OC G50803-16D7X-17603930		2700 MHz +3.2%	2.5	300 mm	120 mm	50 mm
Inno3D GeForce RTX 5080 iCHILL X3 C50803-16D7X-176069H		2715 MHz +3.7%	3.7	334 mm	148 mm	73 mm
Asus PRIME GeForce RTX 5080 EVO PRIME-RTX5080-16G-EVO		2640 MHz +0.9%	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5080 EVO OC Edition PRIME-RTX5080-O16G-EVO	$2,000.00	2685 MHz +2.6%	2.5	304 mm	126 mm	50 mm
Inno3D GeForce RTX 5080 iCHILL FROSTBITE PRO C50803-16D7X-1760FBP		2617 MHz	1	187 mm	110 mm	20 mm
Inno3D GeForce RTX 5080 iCHILL FROSTBITE C50803-16D7X-1760FB		2715 MHz +3.7%	1.6	160 mm	140 mm	31 mm
Inno3D GeForce RTX 5080 X3 OC WHITE N50803-16D7X-17605211		2640 MHz +0.9%	2.5	300 mm	120 mm	50 mm
MSI GeForce RTX 5080 The Mandalorian and Grogu Edition OC G5080-16MGEC		2715 MHz +3.7%	2.5	338 mm	140 mm	50 mm
Asus TUF Gaming GeForce RTX 5080 BTF OC Edition TUF-RTX5080-016G-BTF-GAMING		2730 MHz +4.3%	3.6	348 mm	146 mm	72 mm
Asus TUF Gaming GeForce RTX 5080 BTF Edition TUF-RTX5080-16G-BTF-GAMING		2640 MHz +0.9%	3.6	348 mm	146 mm	72 mm
MSI GeForce RTX 5080 INSPIRE 3X OC BLACK G5080-16I3CB	$2,727.51	2655 MHz +1.5%	2.5	288 mm	112 mm	50 mm
Gigabyte AORUS GeForce RTX 5080 INFINITY GV-N5080AORUS IF-16GD	$3,392.00	2805 MHz +7.2%	3.3	330 mm	145 mm	65 mm
Gigabyte AORUS GeForce RTX 5080 INFINITY WOOD GV-N5080AORUSIF WD-16GD	$3,518.00	2805 MHz +7.2%	3.3	330 mm	145 mm	65 mm
MSI GeForce RTX 5080 SUPRIM DRACO EPIC EDITION		2775 MHz +6.0%	3.8	359 mm	150 mm	76 mm
Gainward GeForce RTX 5080 Python III NE75080019T2-GB2035T		2617 MHz	2.8	331.9 mm	127.1 mm	56.8 mm
KFA2 GeForce RTX 5080 HOF Gaming Black Edition 58NZN6MDCXHO		2760 MHz +5.5%	3.4	354 mm	160 mm	66.7 mm
KFA2 GeForce RTX 5080 HOF Gaming 58NZN6MDDPFG		2775 MHz +6.0%	3.4	354 mm	160 mm	66.7 mm
Manli 30th Anniversary Edition GeForce RTX 5080 OC M-N508AE/D716G-M3678		2730 MHz +4.3%	3.7	370 mm	161 mm	74 mm
Gigabyte GeForce RTX 5080 WINDFORCE OC V2 SFF GV-N5080WF3OCV2-16GD		2670 MHz +2.0%	2.5	304 mm	126 mm	50 mm
MSI GeForce RTX 5080 VENTUS 3X OC BLACK G5080-16V3CB		2655 MHz +1.5%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5080 COD MW4 EDITION OC		2715 MHz +3.7%	2.6	344 mm	144 mm	52 mm

Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Interface	PCIe 5.0 x16
Max temperature	88 C

Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378.0 mm²
Density	120.6 /mm²

Technology	GDDR7
Size	16 GB
Bus	256 bit
Bandwidth	960.0 GB/s
Speed	30.0 Gbps

Base clock	2300 MHz
Boost clock	2670 MHz 2617 MHz
Memory clock	1875 MHz

Cores	10752
TMUs	336
ROPs	112
SMs	84
RT Cores	84

16-pin	1
TDP	360 w
Recommended PSU	850 w

DisplayPort	3 2.1
HDMI	1 2.1
HDCP	2.3

Slots	2.5 2
Length	304 mm
Height	126 mm 137 mm
Width	50 mm 40 mm
