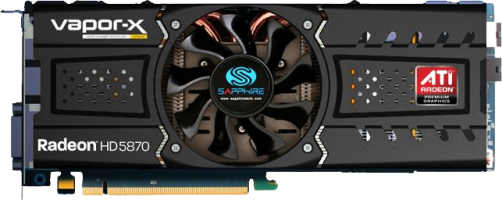

Name: Sapphire Sapphire HD 5870 Vapor-X
Brand: Sapphire
SKU: 100281-2GVXSR

GPUs

AMD Radeon HD 5870

Sapphire Sapphire HD 5870 Vapor-X

AMD Radeon HD 5870
Sapphire Sapphire HD 5870 Vapor-X
100281-2GVXSR
Specifications
Models
No reviews yet. Be the first to share your thoughts!
 Log in to write a review.

Specifications

Information
PlatformConsumer
InterfacePCIe 2.0 x16
GPU Core Config
Cores1600
TMUs80
Compute Units20
ROPs32
Memory
TechnologyGDDR5
Size1 GB
Bus256 bit
Bandwidth153.6 GB/s
Speed4.8 Gbps
Clocks
Base clock850 MHz
Memory clock1200 MHz

Power
6-pin2
TDP188 w
Recommended PSU450 w
Display
DisplayPort1 1.1
HDMI1 1.3a
DVI2
Dimensions
Slots2
Length267 mm 280 mm
Height111 mm
Width37 mm

Models

GPUs▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Matrix HD 5870 Platinum MATRIX 5870 P/2DIS/2GD5	2	273 mm	120 mm	40 mm
MSI HD 5870 Lightning R5870 LIGHTNING	2	277 mm	126 mm	36 mm
Asus ROG Ares ARES/2DIS/4GD5
MSI HD 5870 Lightning II R5870 LIGHTNING II
Sapphire Sapphire HD 5870 Vapor-X 100281-2GVXSR	2	267 mm

Technology	GDDR5
Size	1 GB
Bus	256 bit
Bandwidth	153.6 GB/s
Speed	4.8 Gbps

Platform	Consumer
Interface	PCIe 2.0 x16

Cores	1600
TMUs	80
Compute Units	20
ROPs	32

Base clock	850 MHz
Memory clock	1200 MHz

6-pin	2
TDP	188 w
Recommended PSU	450 w
