Gigabyte AORUS GeForce RTX 5070 Ti INFINITY - Prices, specifications and information

GPUs

NVIDIA RTX 5070 Ti

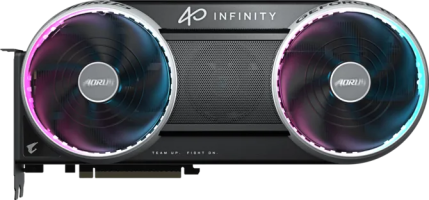

Gigabyte AORUS GeForce RTX 5070 Ti INFINITY

Gigabyte AORUS GeForce RTX 5070 Ti INFINITY - Side

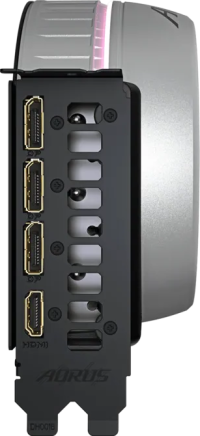

Gigabyte AORUS GeForce RTX 5070 Ti INFINITY - Outputs

NVIDIA RTX 5070 Ti
Gigabyte AORUS GeForce RTX 5070 Ti INFINITY
GV-N507TAORUS IF-16GD

Specifications

Information
PlatformConsumer
ArchitectureBlackwell 2nd-gen
GenerationGeForce RTX 50
Previous GenGeForce RTX 40
NameGB203
InterfacePCIe 5.0 x16
Max temperature88 C
Core
NameGB203
FoundryTSMC
Process Node5 nm
Transistors45600 million
Die Size378.0 mm²
Density120.6 /mm²
GPU Core Config
Cores8960
TMUs280
ROPs96
SMs70
RT Cores70
Memory
TechnologyGDDR7
Size16 GB
Bus256 bit
Bandwidth896.0 GB/s
Speed28.0 Gbps

Clocks
Base clock2295 MHz
Boost clock2670 MHz 2452 MHz
Memory clock1750 MHz
Power
16-pin1
TDP300 w
Recommended PSU750 w
Display
DisplayPort3 2.1b
HDMI1 2.1b
HDCP2.3
Dimensions
Slots3.3
Length330 mm
Height145 mm
Width65 mm

Models

GPU▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Asus ROG Strix GeForce RTX 5070 Ti ROG-STRIX-RTX5070TI-16G-GAMING		2452 MHz	3.2	332 mm	147.3 mm	64 mm
Asus ROG Strix GeForce RTX 5070 Ti OC Edition ROG-STRIX-RTX5070TI-O16G-GAMING	$1,212.00 $1,465.00	2602 MHz +6.1%	3.2	332 mm	147.3 mm	64 mm
Zotac GeForce RTX 5070 Ti AMP Extreme INFINITY ULTRA ZT-B50710BU-10P		2572 MHz +4.9%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5070 Ti AMP Extreme INFINITY ZT-B50710B-10P		2512 MHz +2.4%	3.5	332.1 mm	137.5 mm	69.6 mm
Zotac GeForce RTX 5070 Ti SOLID OC ZT-B50710J-10P	$1,169.00	2482 MHz +1.2%	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5070 Ti SOLID ZT-B50710D-10P		2452 MHz	3.5	329.7 mm	137.8 mm	67.8 mm
Zotac GeForce RTX 5070 Ti SOLID CORE OC White Edition ZT-B50710Q2-10P	$1,099.99	2482 MHz +1.2%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID CORE OC ZT-B50710J2-10P		2482 MHz +1.2%	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID CORE ZT-B50710D2-10P		2452 MHz	2.8	303.5 mm	115.8 mm	55.7 mm
Zotac GeForce RTX 5070 Ti SOLID SFF OC ZT-B50710J3-10A	$999.99	2482 MHz +1.2%	2.1	304.4 mm	115.8 mm	41.6 mm
Zotac GeForce RTX 5070 Ti SOLID SFF ZT-B50710D3-10P		2452 MHz	2.1	304.4 mm	115.8 mm	41.6 mm
Gigabyte AORUS GeForce RTX 5070 Ti MASTER GV-N507TAORUS M-16GD		2670 MHz +8.9%	3.8	360 mm	150 mm	75 mm
Gigabyte GeForce RTX 5070 Ti GAMING OC GV-N507TGAMING OC-16GD	$1,099.99	2588 MHz +5.5%	3.5	342 mm	142 mm	70 mm
Gigabyte GeForce RTX 5070 Ti GAMING GV-N507TGAMING-16GD		2452 MHz	3.5	342 mm	142 mm	70 mm
Gigabyte GeForce RTX 5070 Ti EAGLE OC ICE SFF GV-N507TEAGLEOC ICE-16GD	$1,049.99	2542 MHz +3.7%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF GV-N507TEAGLE OC-16GD	$1,083.00	2542 MHz +3.7%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti EAGLE SFF GV-N507TEAGLE-16GD		2452 MHz	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti AERO OC GV-N507TAERO OC-16GD	$1,157.63	2588 MHz +5.5%	3.5	342 mm	140 mm	70 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC V2 GV-N507TWF3OCV2-16GD	$983.00	2497 MHz +1.8%	2.5	261 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF GV-N507TWF3OC-16GD	$999.99	2497 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Gigabyte GeForce RTX 5070 Ti WINDFORCE SFF GV-N507TWF3-16GD	$1,119.99	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5070 Ti PROART-RTX5070TI-16G		2452 MHz	2.5	304 mm	126 mm	50 mm
Asus ProArt GeForce RTX 5070 Ti OC Edition PROART-RTX5070TI-O16G	$1,128.00	2588 MHz +5.5%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5070 Ti BTF White OC Edition TUF-RTX5070TI-O16G-BTF-WHITE	$1,160.00	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti BTF White Edition TUF-RTX5070TI-16G-BTF-WHITE		2452 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti White OC Edition TUF-RTX5070TI-O16G-WHITE-GAMING	$1,169.99	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
Asus PRIME GeForce RTX 5070 Ti PRIME-RTX5070TI-16G	$899.99	2452 MHz	2.5	304 mm	126 mm	50 mm
Asus PRIME GeForce RTX 5070 Ti OC Edition PRIME-RTX5070TI-O16G	$1,009.99	2497 MHz +1.8%	2.5	304 mm	126 mm	50 mm
Asus TUF Gaming GeForce RTX 5070 Ti TUF-RTX5070TI-16G-GAMING		2452 MHz	3.2	329 mm	140 mm	62.5 mm
Asus TUF Gaming GeForce RTX 5070 Ti OC Edition TUF-RTX5070TI-O16G-GAMING	$1,069.99 $1,449.99	2588 MHz +5.5%	3.2	329 mm	140 mm	62.5 mm
MSI GeForce RTX 5070 Ti FRIEREN EDITION OC G507T-16FEC	$1,149.99	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ G507T-16V3Z		2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ OC G507T-16V3ZC	$941.00 $999.99	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti MLG EDITION G507T-16ME		2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti MLG EDITION OC G507T-16MEC	$999.99	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti EXPERT G507T-16E		2452 MHz	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5070 Ti EXPERT OC G507T-16EC	$977.00	2580 MHz +5.2%	3	319 mm	150 mm	60 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X G507T-16I3		2452 MHz	2.5	288 mm	122 mm	50 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X OC G507T-16I3C	$1,034.00	2482 MHz +1.2%	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO G507T-16GT		2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC G507T-16GTC	$941.00 $1,049.99	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO WHITE G507T-16GTW		2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC WHITE G507T-16GTCW	$1,103.00	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO PLUS G507T-16GTP		2452 MHz	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti GAMING TRIO OC PLUS G507T-16GTCP	$941.00 $1,249.99	2572 MHz +4.9%	2.5	338 mm	140 mm	50 mm
MSI GeForce RTX 5070 Ti SHADOW 3X G507T-16S3		2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti SHADOW 3X OC G507T-16S3C	$979.99	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VANGUARD SOC LAUNCH EDITION G507T-16VGSL		2588 MHz +5.5%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VANGUARD SOC G507T-16VGS		2588 MHz +5.5%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VANGUARD OC G507T-16VGC		2572 MHz +4.9%	3.3	357 mm	151 mm	66 mm
MSI GeForce RTX 5070 Ti VENTUS 3X G507T-16V3		2452 MHz	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X OC G507T-16V3C	$969.00 $969.99	2482 MHz +1.2%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X PLUS G507T-16I3P		2452 MHz	2.5	288 mm	112 mm	50 mm
MSI GeForce RTX 5070 Ti INSPIRE 3X OC PLUS G507T-16I3CP		2482 MHz +1.2%	2.5	288 mm	112 mm	50 mm
Palit GeForce RTX 5070 Ti GamingPro-S NE7507T019T2-GB2031U		2452 MHz	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 Ti GamingPro-S OC NE7507TS19T2-GB2031U		2482 MHz +1.2%	2.5	331.9 mm	127.1 mm	49.7 mm
Palit GeForce RTX 5070 Ti GamingPro V1 NE7507T019T2-GB2031Y		2452 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro OC V1 NE7507TS19T2-GB2031Y		2482 MHz +1.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro NE7507T019T2-GB2031A		2452 MHz	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GamingPro OC NE7507TS19T2-GB2031A		2482 MHz +1.2%	3	331.9 mm	127.1 mm	60 mm
Palit GeForce RTX 5070 Ti GameRock NE7507T019T2-GB2030G		2452 MHz	3.6	331.9 mm	150 mm	70.4 mm
Palit GeForce RTX 5070 Ti GameRock OC NE7507TH19T2-GB2030G		2512 MHz +2.4%	3.6	331.9 mm	160 mm	70.4 mm
PNY GeForce RTX 5070 Ti Triple Fan Plus VCG5071T16TFXPB1	$929.00 $1,179.99	2452 MHz	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5070 Ti Overclocked Triple Fan Plus VCG5071T16TFXPB1-O		2572 MHz +4.9%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5070 Ti EPIC-X RGB Triple Fan Plus VCG5071T16TFXXPB1		2452 MHz	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5070 Ti EPIC-X RGB Overclocked Triple Fan Plus VCG5071T16TFXXPB1-O	$919.99 $979.99	2640 MHz +7.7%	3	328.7 mm	137.7 mm	59.7 mm
PNY GeForce RTX 5070 Ti Slim Dual Fan Overclocked VCG5070T16DFSXPB1-O		2572 MHz +4.9%	2	290 mm	150 mm	40 mm
PNY GeForce RTX 5070 Ti Slim Dual Fan VCG5070T16DFSXPB1		2452 MHz	2	290 mm	150 mm	40 mm
Gainward GeForce RTX 5070 Ti Phoenix-S NE7507T019T2-GB2031K		2452 MHz	2.5	331.9 mm	127.1 mm	49.4 mm
Gainward GeForce RTX 5070 Ti Phoenix-S GS NE7507TS19T2-GB2031K		2482 MHz +1.2%	2.5	331.9 mm	127.1 mm	49.4 mm
Gainward GeForce RTX 5070 Ti Phoenix V1 NE7507T019T2-GB2031C		2452 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Ti Phoenix NE7507T019T2-GB2031X		2452 MHz	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Ti Phoenix GS NE7507TS19T2-GB2031X		2482 MHz +1.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Ti Phoenix GS V1 NE7507TS19T2-GB2031C		2482 MHz +1.2%	3	331.9 mm	133.1 mm	60 mm
Gainward GeForce RTX 5070 Ti Phantom NE7507T019T2-GB2030P		2452 MHz	3.5	331.9 mm	145.6 mm	69.9 mm
Gainward GeForce RTX 5070 Ti Phantom GS NE7507TH19T2-GB2030P		2512 MHz +2.4%	3.5	331.9 mm	145.6 mm	69.9 mm
PNY GeForce RTX 5070 Ti Overclocked Triple Fan VCG5070T16TFXPB1-O	$969.99	2572 MHz +4.9%	3	299.7 mm	120.1 mm	59.7 mm
PNY GeForce RTX 5070 Ti Triple Fan VCG5070T16TFXPB1	$1,041.00	2450 MHz -0.1%	3	299.7 mm	120.1 mm	59.7 mm
Inno3D GeForce RTX 5070 Ti X3 N507T3-16D7-176068N		2452 MHz	2.1	300 mm	116 mm	41 mm
Inno3D GeForce RTX 5070 Ti X3 OC WHITE N507T3-16D7X-176068W		2482 MHz +1.2%	2.1	300 mm	116 mm	41 mm
Inno3D GeForce RTX 5070 Ti X3 OC N507T3-16D7X-176068N		2482 MHz +1.2%	2.1	300 mm	116 mm	41 mm
Inno3D GeForce RTX 5070 Ti iCHILL X3 C507T3-16D7X-176069R		2512 MHz +2.4%	3.7	334 mm	148 mm	73 mm
Zotac GeForce RTX 5070 Ti APOCALYPSE OC ZT-B50710C-10P	$1,171.00	2572 MHz +4.9%	3.7	361 mm	138 mm	73 mm
PNY GeForce RTX 5070 Ti EPIC-X RGB Overclocked Triple Fan VCG5070T16TFXXPB1-O		2300 MHz -6.2%	3	299.7 mm	120.1 mm	59.7 mm
MSI GeForce RTX 5070 Ti VENTUS 3X PZ OC BLACK G507T-16V3ZCB	$999.99	2497 MHz +1.8%	2.5	303 mm	121 mm	49 mm
MSI GeForce RTX 5070 Ti VENTUS 3X OC BLACK G507T-16V3CB	$1,067.00	2497 MHz +1.8%	2.5	303 mm	121 mm	49 mm
Gigabyte AORUS GeForce RTX 5070 Ti INFINITY GV-N507TAORUS IF-16GD		2670 MHz +8.9%	3.3	330 mm	145 mm	65 mm

Platform	Consumer
Architecture	Blackwell 2nd-gen
Generation	GeForce RTX 50
Previous Gen	GeForce RTX 40
Name	GB203
Interface	PCIe 5.0 x16
Max temperature	88 C

Name	GB203
Foundry	TSMC
Process Node	5 nm
Transistors	45600 million
Die Size	378.0 mm²
Density	120.6 /mm²

Technology	GDDR7
Size	16 GB
Bus	256 bit
Bandwidth	896.0 GB/s
Speed	28.0 Gbps

Base clock	2295 MHz
Boost clock	2670 MHz 2452 MHz
Memory clock	1750 MHz

Cores	8960
TMUs	280
ROPs	96
SMs	70
RT Cores	70

16-pin	1
TDP	300 w
Recommended PSU	750 w

DisplayPort	3 2.1b
HDMI	1 2.1b
HDCP	2.3

Slots	3.3
Length	330 mm
Height	145 mm
Width	65 mm
