GPUs
GPUs
Popular models
Popular models
| Platform | Consumer |
| Architecture | Ada Lovelace |
| Generation | GeForce RTX 40 |
| Previous Gen | GeForce RTX 30 |
| Next generation | GeForce RTX 50 |
| Interface | PCIe 4.0 x16 |
| Max temperature | 90 C |
| Name | AD103 |
| Foundry | TSMC |
| Process Node | 5 nm |
| Transistors | 45900 million |
| Die Size | 379.0 mm² |
| Density | 121.1 /mm² |
| Cores | 10240 |
| TMUs | 320 |
| ROPs | 112 |
| Technology | GDDR6X |
| Size | 16 GB |
| Bus | 256 bit |
| Bandwidth | 736.3 GB/s |
| Speed | 23.0 Gbps |
| Base clock | 2295 MHz |
| Boost clock | 2625 MHz 2550 MHz |
| Memory clock | 1438 MHz |
| 16-pin | 1 |
| TDP | 320 w |
| Recommended PSU | 850 w 750 w |

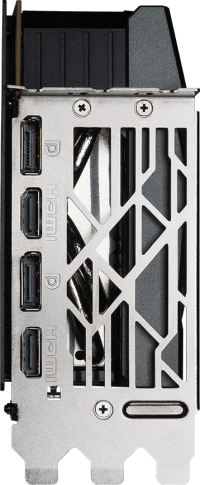

| DisplayPort | 2 1.4a |
| HDMI | 2 2.1a |
| Slots | 3.1 |
| Length | 322 mm 304 mm |
| Height | 136 mm 137 mm |
| Width | 62 mm 60 mm |
| Weight | 1628 g |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2670 MHz +4.7% | 3.5 | 357.6 mm | 149.3 mm | 70.1 mm | ||
| 2580 MHz +1.2% | 3.5 | 357.6 mm | 149.3 mm | 70.1 mm | ||
| 2670 MHz +4.7% | 3.5 | 357.6 mm | 149.3 mm | 70.1 mm | ||
| 2580 MHz +1.2% | 3.5 | 357.6 mm | 149.3 mm | 70.1 mm | ||
| 2640 MHz +3.5% | 4.4 | 310 mm | 144.8 mm | 87.5 mm | ||
| 2550 MHz | 3 | 304 mm | 137 mm | 60 mm | ||
| 2580 MHz +1.2% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2640 MHz +3.5% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2580 MHz +1.2% | 3.7 | 348.2 mm | 150 mm | 72.6 mm | ||
| 2640 MHz +3.5% | 3.7 | 348.2 mm | 150 mm | 72.6 mm | ||
| 2595 MHz +1.8% | 3.8 | 342 mm | 150 mm | 75 mm | ||
| 2550 MHz | 3.2 | 328.9 mm | 131.1 mm | 63.6 mm | ||
| 2625 MHz +2.9% | 3.1 | 322 mm | 136 mm | 62 mm |
