GPU
| Platform | Consumer |
| Architecture | Ada Lovelace |
| Generation | GeForce RTX 40 |
| Previous Gen | GeForce RTX 30 |
| Next generation | GeForce RTX 50 |
| Interface | PCIe 4.0 x16 |
| Max temperature | 90 C |
| Name | AD104 |
| Foundry | TSMC |
| Process Node | 5 nm |
| Transistors | 35800 million |
| Die Size | 294.0 mm² |
| Density | 121.8 /mm² |
| Cores | 7680 |
| TMUs | 240 |
| ROPs | 80 |
| Tensor Cores | 240 |
| RT Cores | 60 |
| Technology | GDDR6X |
| Size | 12 GB |
| Bus | 192 bit |
| Bandwidth | 504.2 GB/s |
| Speed | 21.0 Gbps |
| Base clock | 2310 MHz |
| Boost clock | 2655 MHz 2610 MHz |
| Memory clock | 1313 MHz |
| 16-pin | 1 |
| TDP | 285 w |
| Recommended PSU | 700 w |

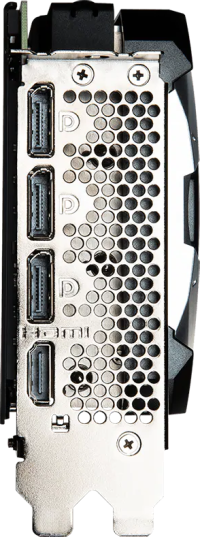

| DisplayPort | 3 1.4a |
| HDMI | 1 2.1a |
| Monitors | 4 |
| Slots | 2.6 |
| Length | 308 mm |
| Height | 123 mm |
| Width | 51 mm |
| Weight | 1150 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2760 MHz +5.7% | 3.3 | 305 mm | 138 mm | 65 mm | ||
| 2640 MHz +1.1% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2760 MHz +5.7% | 2.5 | 300 mm | 120 mm | 50 mm | ||
| 2760 MHz +5.7% | 3.3 | 305 mm | 138 mm | 65 mm | ||
| 2640 MHz +1.1% | 3.3 | 305 mm | 138 mm | 65 mm | ||
| 2640 MHz +1.1% | 3.2 | 336 mm | 150 mm | 63 mm | ||
| 2790 MHz +6.9% | 3.2 | 336 mm | 150 mm | 63 mm | ||
| 2655 MHz +1.7% | 3.6 | 342 mm | 153 mm | 70.6 mm | ||
| 2640 MHz +1.1% | 2.9 | 336 mm | 140 mm | 58 mm | ||
| 2625 MHz +0.6% | 2.9 | 301 mm | 136 mm | 58 mm | ||
| 2655 MHz +1.7% | 3.3 | 332.7 mm | 136.4 mm | 66.5 mm | ||
| 2610 MHz | 3.3 | 332.7 mm | 136.4 mm | 66.5 mm | ||
| 2655 MHz +1.7% | 2.6 | 308 mm | 123 mm | 51 mm |
