GPU
| Platform | Consumer |
| Architecture | Ampere |
| Generation | GeForce RTX 30 |
| Previous Gen | GeForce RTX 20 |
| Next generation | GeForce RTX 40 |
| Interface | PCIe 4.0 x16 |
| Max temperature | 93 C |
| Name | GA102 |
| Foundry | Samsung |
| Process Node | 8 nm |
| Transistors | 28300 million |
| Die Size | 628.0 mm² |
| Density | 45.1 /mm² |
| Cores | 10496 |
| TMUs | 328 |
| ROPs | 112 |
| Tensor Cores | 328 |
| RT Cores | 82 |
| Technology | GDDR6X |
| Size | 24 GB |
| Bus | 384 bit |
| Bandwidth | 936.2 GB/s |
| Speed | 19.5 Gbps |
| Base clock | 1395 MHz |
| Boost clock | 1725 MHz 1695 MHz |
| Memory clock | 1219 MHz |
| 8-pin | 2 |
| TDP | 350 w |
| Recommended PSU | 750 w |

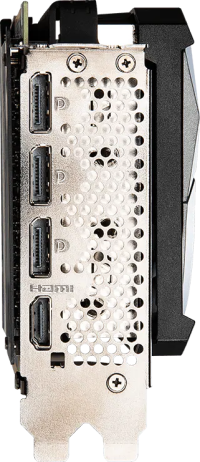

| DisplayPort | 3 1.4a |
| HDMI | 1 2.1 |
| Resolution | 7680x4320 |
| Monitors | 4 |
| Slots | 2.9 3 |
| Length | 305 mm 313 mm |
| Height | 120 mm 138 mm |
| Width | 57 mm 55 mm |
| Weight | 1387 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1725 MHz +1.8% | 2.9 | 318.5 mm | 140.1 mm | 57.8 mm | ||
| 1890 MHz +11.5% | 2.9 | 318.5 mm | 140.1 mm | 57.8 mm | ||
| 1890 MHz +11.5% | 2.9 | 318.5 mm | 140.1 mm | 57.8 mm | ||
| 1725 MHz +1.8% | 1 | 216 mm | 136.2 mm | 19.8 mm | ||
| 1890 MHz +11.5% | 2.9 | 318.5 mm | 140.1 mm | 57.8 mm | ||
| 1725 MHz +1.8% | 2.9 | 318.5 mm | 140.1 mm | 57.8 mm | ||
| 1890 MHz +11.5% | 2.9 | 318.5 mm | 140.1 mm | 57.8 mm | ||
| 1695 MHz | 3 | 313 mm | 138 mm | 55 mm | ||
| 1725 MHz +1.8% | 2.6 | 299.9 mm | 126.9 mm | 51.7 mm | ||
| 1770 MHz +4.4% | 2.6 | 299.9 mm | 126.9 mm | 51.7 mm | ||
| 1800 MHz +6.2% | 2.8 | 300 mm | 136.8 mm | |||
| 1740 MHz +2.7% | 2.75 | 300 mm | 136.8 mm | |||
| 1695 MHz | 2.2 | 285.4 mm | 111.2 mm | |||
| 1725 MHz +1.8% | 2.9 | 305 mm | 120 mm | 57 mm |
