| Platform | Consumer |
| Architecture | Ampere |
| Generation | GeForce RTX 30 |
| Previous Gen | GeForce RTX 20 |
| Next generation | GeForce RTX 40 |
| Interface | PCIe 4.0 x16 |
| Max temperature | 93 C |
| Name | GA102 |
| Foundry | Samsung |
| Process Node | 8 nm |
| Transistors | 28300 million |
| Die Size | 628.0 mm² |
| Density | 45.1 /mm² |
| Cores | 10240 |
| TMUs | 320 |
| ROPs | 112 |
| Tensor Cores | 320 |
| RT Cores | 80 |
| Technology | GDDR6X |
| Size | 12 GB |
| Bus | 384 bit |
| Bandwidth | 912.4 GB/s |
| Speed | 19.0 Gbps |
| Base clock | 1365 MHz |
| Boost clock | 1665 MHz |
| Memory clock | 1188 MHz |
| 8-pin | 2 |
| TDP | 350 w |
| Recommended PSU | 750 w |

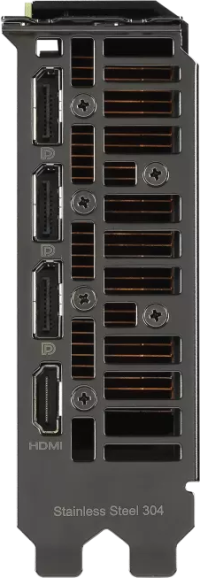

| DisplayPort | 3 1.4a |
| HDMI | 1 2.1 |
| Resolution | 7680x4320 |
| Monitors | 4 |
| Slots | 2 |
| Width | 40 mm |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1785 MHz +7.2% | 2.6 | 299.9 mm | 126.9 mm | 51.7 mm | ||
| 1695 MHz +1.8% | 2.9 | 318.5 mm | 140.1 mm | 57.8 mm | ||
| 1845 MHz +10.8% | 2.9 | 318.5 mm | 140.1 mm | 57.8 mm | ||
| 1695 MHz +1.8% | 2.6 | 293 mm | 133 mm | 52 mm | ||
| 1860 MHz +11.7% | 2.6 | 293 mm | 133 mm | 52 mm | ||
| 1665 MHz | 2 | 40 mm | ||||
| 1695 MHz +1.8% | 2.6 | 299.9 mm | 126.9 mm | 51.7 mm | ||
| 1665 MHz | 2 |
