GPU
| Platform | Consumer |
| Architecture | Maxwell 2.0 |
| Generation | GeForce 900 |
| Previous Gen | GeForce 700 |
| Next generation | GeForce 10 |
| Interface | PCIe 3.0 x16 |
| Name | GM200 |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 8000 million |
| Die Size | 601.0 mm² |
| Density | 13.3 /mm² |
| Cores | 2816 |
| TMUs | 176 |
| ROPs | 96 |
| Technology | GDDR5 |
| Size | 6 GB |
| Bus | 384 bit |
| Bandwidth | 336.6 GB/s |
| Speed | 7.0 Gbps |
| Base clock | 1190 MHz 1000 MHz |
| Boost clock | 1291 MHz 1076 MHz |
| Memory clock | 1774 MHz 1753 MHz |
| 8-pin | 2 |
| TDP | 250 w |
| Recommended PSU | 600 w |

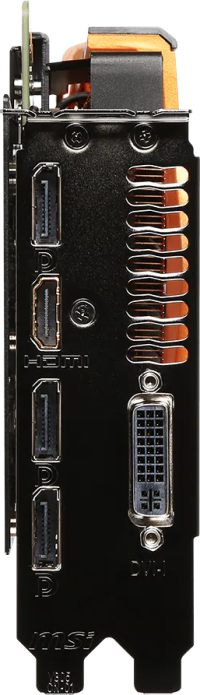

| DisplayPort | 3 1.2 |
| HDMI | 1 |
| DVI-I | 1 |
| Slots | 2 |
| Length | 277 mm |
| Height | 141 mm |
| Width | 40 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1367 MHz +27.0% | ||||||
| 1291 MHz +20.0% | 2 | |||||
| 1304 MHz +21.2% | 2.7 | 330 mm | 140 mm | 53 mm | ||
| 1291 MHz +20.0% | 1.3 | 294 mm | 153 mm | 26 mm | ||
| 1203 MHz +11.8% | 2 | 287 mm | ||||
 $694.00 | 1076 MHz | |||||
| 1291 MHz +20.0% | 2 | 277 mm | 141 mm | 40 mm | ||
| 1279 MHz +18.9% | 2 | 277 mm | 140 mm | 40 mm | ||
| 1114 MHz +3.5% | 2 | 277 mm | 140 mm | 40 mm | ||
| 1114 MHz +3.5% | 2.7 | 330 mm | 140 mm | 53 mm | ||
| 1291 MHz +20.0% | 2 | 270 mm | 111 mm | 40 mm | ||
| 1291 MHz +20.0% | 2 | 305 mm | ||||
| 1076 MHz | 2 | 305 mm | 40 mm | |||
| 1190 MHz +10.6% | 2 | 277 mm | 135 mm | 37 mm | ||
| 1076 MHz | 2 | 281 mm | 111 mm | 38 mm |
