GPU
| Platform | Consumer |
| Architecture | Maxwell 2.0 |
| Generation | GeForce 900 |
| Previous Gen | GeForce 700 |
| Next generation | GeForce 10 |
| Interface | PCIe 3.0 x16 |
| Name | GM206 |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 2940 million |
| Die Size | 228.0 mm² |
| Density | 12.9 /mm² |
| Cores | 1024 |
| TMUs | 64 |
| ROPs | 32 |
| Technology | GDDR5 |
| Size | 2 GB |
| Bus | 128 bit |
| Bandwidth | 112.2 GB/s |
| Speed | 7.0 Gbps |
| Base clock | 1127 MHz |
| Boost clock | 1178 MHz |
| Memory clock | 1753 MHz |
| 8-pin | 1 |
| TDP | 120 w |
| Recommended PSU | 400 w 300 w |

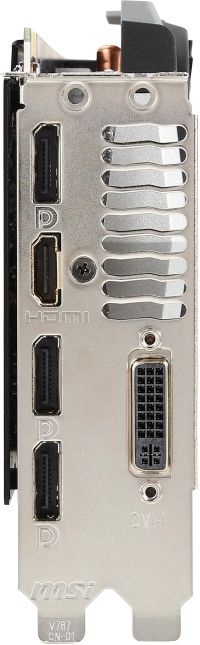

| DisplayPort | 3 1.2 |
| HDMI | 1 1.4 |
| DVI-I | 1 |
| Slots | 2 |
| Length | 273 mm |
| Height | 130 mm |
| Width | 37 mm |
| Weight | 593 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1291 MHz +9.6% | 2 | 217 mm | 121 mm | 40 mm | ||
| 1304 MHz +10.7% | 2.4 | 267 mm | 139 mm | 48 mm | ||
| 1304 MHz +10.7% | 2 | 267 mm | 139 mm | 40 mm | ||
| 1241 MHz +5.3% | 1.9 | 273 mm | 130 mm | 37 mm | ||
| 1178 MHz | 2 | 273 mm | 130 mm | 37 mm |
