GPU
| Platform | Consumer |
| Architecture | Kepler |
| Generation | GeForce 700 |
| Previous Gen | GeForce 600 |
| Next generation | GeForce 900 |
| Interface | PCIe 3.0 x16 |
| Name | GK110 |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 7080 million |
| Die Size | 561.0 mm² |
| Density | 12.6 /mm² |
| Cores | 2304 |
| TMUs | 192 |
| ROPs | 48 |
| Technology | GDDR5 |
| Size | 3 GB |
| Bus | 384 bit |
| Base clock | 967 MHz 863 MHz |
| Boost clock | 1020 MHz 902 MHz |
| 6-pin | 1 |
| 8-pin | 1 |
| TDP | 250 w |
| Recommended PSU | 600 w |

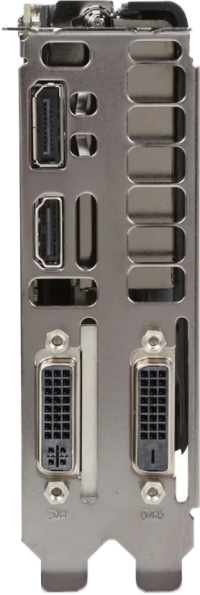

| DisplayPort | 1 1.2 |
| HDMI | 1 1.4a |
| DVI-D DL | 1 |
| DVI-I | 1 |
| Slots | 2 |
| Length | 268 mm |
| Height | 110 mm |
| Width | 35 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 902 MHz | 2 | 287 mm | ||||
| 1046 MHz +16.0% | 2 | 281 mm | 138 mm | 37 mm | ||
| 1033 MHz +14.5% | 2.6 | 295 mm | 128.6 mm | 51.4 mm | ||
| 1006 MHz +11.5% | 1.9 | 266 mm | 129 mm | 38 mm | ||
| 902 MHz | 2 | 267 mm | 111 mm | 38 mm | ||
| 1020 MHz +13.1% | 2 | 268 mm | 110 mm | 35 mm |
