GPU
| Platform | Consumer |
| Architecture | Kepler |
| Generation | GeForce 700 |
| Previous Gen | GeForce 600 |
| Next generation | GeForce 900 |
| Interface | PCIe 3.0 x16 |
| Name | GK104 |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 3540 million |
| Die Size | 294.0 mm² |
| Density | 12.0 /mm² |
| Cores | 1152 |
| TMUs | 96 |
| ROPs | 32 |
| Technology | GDDR5 |
| Size | 2 GB |
| Bus | 256 bit |
| Bandwidth | 192.3 GB/s |
| Speed | 6.0 Gbps |
| Base clock | 1072 MHz 980 MHz |
| Boost clock | 1137 MHz 1033 MHz |
| Memory clock | 1502 MHz |
| 6-pin | 1 |
| 8-pin | 1 |
| TDP | 170 w |
| Recommended PSU | 500 w 450 w |

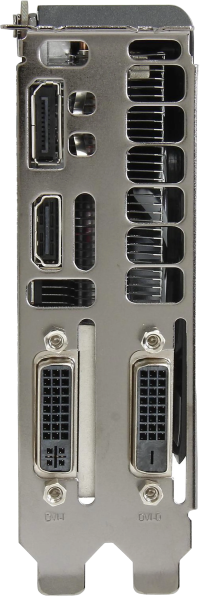

| DisplayPort | 1 |
| HDMI | 1 |
| DVI-D DL | 1 |
| DVI-I | 1 |
| Slots | 2 |
| Length | 243 mm |
| Height | 111 mm |
| Width | 38 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1033 MHz | ||||||
| 1072 MHz +3.8% | 2 | 280 mm | 118 mm | 40 mm | ||
| 1150 MHz +11.3% | 2 | 260 mm | 126 mm | 38 mm | ||
| 1137 MHz +10.1% | 2 | 243 mm | 111 mm | 38 mm |
