Name: MSI GeForce GTX 590
Brand: MSI
SKU: N590GTX-P3D3GD5

GPUs

NVIDIA GTX 590

MSI GeForce GTX 590

NVIDIA GTX 590
MSI GeForce GTX 590
N590GTX-P3D3GD5
Specifications
Models
No reviews yet. Be the first to share your thoughts!
 Log in to write a review.

Specifications

Information
PlatformConsumer
ArchitectureFermi 2.0
GenerationGeForce 500
Previous GenGeForce 400
Next generationGeForce 600
Core
NameGF110 x2
FoundryTSMC
Process Node40 nm
Transistors3000 million
Die Size520.0 mm²
Density5.8 /mm²
GPU Core Config
Cores512 x2
TMUs64 x2
ROPs48 x2
SMs16 x2
Memory
TechnologyGDDR5
Size1.5 GB x2
Bus384 bit x2
Bandwidth164.0 GB/s x2
Speed3.4 Gbps

Clocks
Base clock607 MHz 608 MHz
Shader clock1215 MHz
Memory clock854 MHz
Power
8-pin2
TDP365 w
Recommended PSU700 w

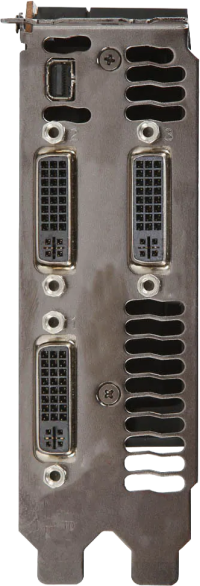

Display
Mini DisplayPort1
DVI3
Dimensions
Slots2
Length280 mm 279 mm
Height111 mm
Width38 mm 40 mm

Models

GPUs▲	Price▲	Shader clock▲	Slots▲	Length▲	Height▲	Width▲
MSI GeForce GTX 590 N590GTX-P3D3GD5		1215 MHz	2	280 mm	111 mm	38 mm

Platform	Consumer
Architecture	Fermi 2.0
Generation	GeForce 500
Previous Gen	GeForce 400
Next generation	GeForce 600

Name	GF110 x2
Foundry	TSMC
Process Node	40 nm
Transistors	3000 million
Die Size	520.0 mm²
Density	5.8 /mm²

Technology	GDDR5
Size	1.5 GB x2
Bus	384 bit x2
Bandwidth	164.0 GB/s x2
Speed	3.4 Gbps

Base clock	607 MHz 608 MHz
Shader clock	1215 MHz
Memory clock	854 MHz

Cores	512 x2
TMUs	64 x2
ROPs	48 x2
SMs	16 x2

8-pin	2
TDP	365 w
Recommended PSU	700 w

Mini DisplayPort	1
DVI	3

Slots	2
Length	280 mm 279 mm
Height	111 mm
Width	38 mm 40 mm
