GPU
| Platform | Consumer |
| Architecture | Turing |
| Generation | GeForce 16 |
| Previous Gen | GeForce 10 |
| Next generation | GeForce RTX 20 |
| Interface | PCIe 3.0 x16 |
| Max temperature | 93 C |
| Name | TU116 |
| Foundry | TSMC |
| Process Node | 12 nm |
| Transistors | 6600 million |
| Die Size | 284.0 mm² |
| Density | 23.2 /mm² |
| Cores | 1408 |
| TMUs | 88 |
| ROPs | 48 |
| SMs | 22 |
| Technology | GDDR6 |
| Size | 6 GB |
| Bus | 192 bit |
| Bandwidth | 336.0 GB/s |
| Speed | 14.0 Gbps |
| Base clock | 1530 MHz |
| Boost clock | 1815 MHz 1785 MHz |
| Memory clock | 1750 MHz |
| 8-pin | 1 |
| TDP | 125 w |
| Recommended PSU | 450 w |

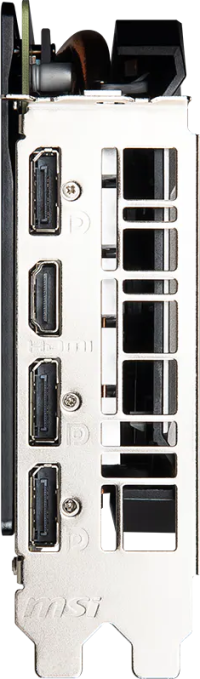

| DisplayPort | 3 1.4a |
| HDMI | 1 2.0b |
| Resolution | 7680 x 4320 |
| Slots | 2.1 2 |
| Length | 204 mm 145 mm |
| Height | 128 mm 111 mm |
| Width | 42 mm |
| Weight | 669 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1845 MHz +3.4% | 2.1 | 209.6 mm | 119.3 mm | 41 mm | ||
| 1845 MHz +3.4% | 2.2 | 239 mm | 122 mm | 44 mm | ||
| 1815 MHz +1.7% | 2.1 | 204 mm | 128 mm | 42 mm | ||
| 1830 MHz +2.5% | 2.1 | 225.6 mm | 122 mm | 40.5 mm | ||
 $329.00 | 1860 MHz +4.2% | 2.7 | 242 mm | 130 mm | 53 mm | |
| $329.00 | 1845 MHz +3.4% | 2.3 | 206 mm | 124 mm | 46 mm | |
| $236.00 | 1815 MHz +1.7% | 2.1 | 179 mm | 127 mm | 42 mm | |
| 1785 MHz | 2.3 | 225 mm | 125 mm | 45 mm |
