GPU
| Platform | Consumer |
| Architecture | Pascal |
| Generation | GeForce 10 |
| Previous Gen | GeForce 900 |
| Next generation | GeForce RTX 20 |
| Interface | PCIe 3.0 x16 |
| Name | GP102 |
| Foundry | TSMC |
| Process Node | 16 nm |
| Transistors | 11800 million |
| Die Size | 471.0 mm² |
| Density | 25.1 /mm² |
| Cores | 3584 |
| TMUs | 224 |
| ROPs | 88 |
| Technology | GDDR5X |
| Size | 11 GB |
| Bus | 352 bit |
| Bandwidth | 484.4 GB/s |
| Speed | 11.0 Gbps |
| Base clock | 1518 MHz 1481 MHz |
| Boost clock | 1632 MHz 1582 MHz |
| Memory clock | 1376 MHz |
| 8-pin | 3 |
| TDP | 250 w |
| Recommended PSU | 750 w 600 w |

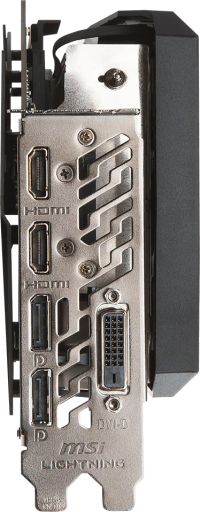

| DisplayPort | 2 1.4 |
| HDMI | 2 2.0b |
| DVI-D DL | 1 |
| Slots | 3.1 2 |
| Length | 320 mm 266.7 mm |
| Height | 140 mm 111.2 mm |
| Width | 61 mm 40 mm |
| Weight | 1707 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1582 MHz | ||||||
| 1632 MHz +3.2% | 2 | |||||
| 1607 MHz +1.6% | ||||||
| 1582 MHz | 2 | 266.7 mm | 111.2 mm | 40 mm | ||
| 1721 MHz +8.8% | 3.1 | 320 mm | 140 mm | 61 mm | ||
| 1695 MHz +7.1% | 2 | 299.7 mm | 142.7 mm | |||
| 1708 MHz +8.0% | 2 | 298 mm | ||||
| 1708 MHz +8.0% | 3 | 285 mm | 133 mm | 56 mm | ||
| 1632 MHz +3.2% | 3.1 | 320 mm | 140 mm | 61 mm |
