| Platform | Consumer |
| Architecture | Pascal |
| Generation | GeForce 10 |
| Previous Gen | GeForce 900 |
| Next generation | GeForce RTX 20 |
| Interface | PCIe 3.0 x16 |
| Name | GP104 |
| Foundry | TSMC |
| Process Node | 16 nm |
| Transistors | 7200 million |
| Die Size | 314.0 mm² |
| Density | 22.9 /mm² |
| Cores | 2560 |
| TMUs | 160 |
| ROPs | 64 |
| Technology | GDDR5X |
| Size | 8 GB |
| Bus | 256 bit |
| Bandwidth | 320.3 GB/s |
| Speed | 10.0 Gbps |
| Base clock | 1721 MHz 1607 MHz |
| Boost clock | 1860 MHz 1733 MHz |
| Memory clock | 1251 MHz |
| 8-pin | 2 |
| TDP | 180 w |
| Recommended PSU | 500 w 450 w |

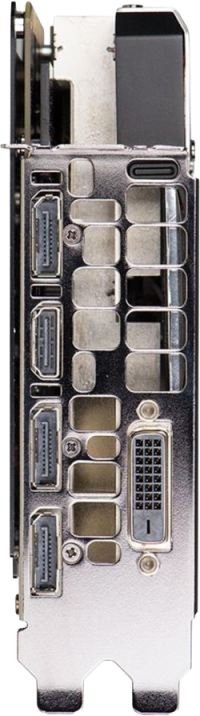

| DisplayPort | 3 1.4a |
| HDMI | 1 2.0 |
| DVI | 1 |
| Slots | 2 |
| Length | 279 mm 267 mm |
| Height | 112 mm |
| Width | 40 mm |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1733 MHz | ||||||
| 1733 MHz | 2 | 267 mm | 112 mm | 40 mm | ||
| 1860 MHz +7.3% | 2.7 | 277 mm | 167 mm | 54 mm | ||
| 1771 MHz +2.2% | 2 | 269 mm | 111 mm | 35 mm | ||
| 1860 MHz +7.3% | 2 | 279 mm |
