GPU
| Platform | Consumer |
| Architecture | Pascal |
| Generation | GeForce 10 |
| Previous Gen | GeForce 900 |
| Next generation | GeForce RTX 20 |
| Name | GP104 |
| Interface | PCIe 3.0 x16 |
| Name | GP104 |
| Foundry | TSMC |
| Process Node | 16 nm |
| Transistors | 7200 million |
| Die Size | 314.0 mm² |
| Density | 22.9 /mm² |
| Cores | 2432 |
| TMUs | 152 |
| ROPs | 64 |
| Technology | GDDR5 |
| Size | 8 GB |
| Bus | 256 bit |
| Bandwidth | 256.3 GB/s |
| Speed | 8.0 Gbps |
| Base clock | 1607 MHz |
| Boost clock | 1683 MHz |
| Memory clock | 2002 MHz |
| 6-pin | 1 |
| 8-pin | 1 |
| TDP | 180 w |
| Recommended PSU | 500 w 450 w |

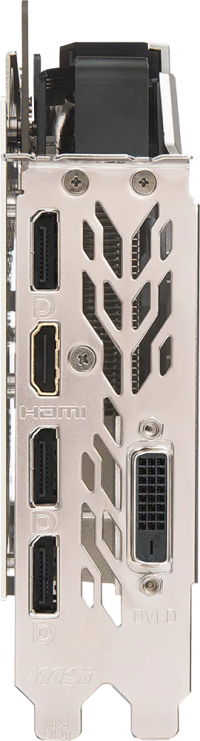

| DisplayPort | 3 1.4 |
| HDMI | 1 2.0b |
| DVI-D DL | 1 |
| Slots | 2.1 2 |
| Length | 279 mm |
| Height | 140 mm |
| Width | 42 mm |
| Weight | 1093 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1683 MHz | ||||||
| 1683 MHz | 2 | |||||
| 1683 MHz | ||||||
| 1683 MHz | 2.1 | 279 mm | 140 mm | 42 mm | ||
| 1683 MHz | 2.1 | 279 mm | 140 mm | 42 mm |
