GPU
| Platform | Workstation |
| Architecture | Battlemage |
| Generation | Arc B |
| Previous Gen | Arc A |
| Interface | PCIe 5.0 x8 |
| Name | BMG-G21 |
| Foundry | TSMC |
| Process Node | 5 nm |
| Transistors | 19600 million |
| Die Size | 272.0 mm² |
| Density | 72.1 /mm² |
| Cores | 2560 |
| TMUs | 160 |
| ROPs | 80 |
| RT Cores | 20 |
| Technology | GDDR6 |
| Size | 24 GB |
| Bus | 192 bit |
| Bandwidth | 456.0 GB/s |
| Speed | 19.0 Gbps |
| Base clock | 2000 MHz |
| Boost clock | 2400 MHz |
| Memory clock | 2375 MHz |
| 8-pin | 1 |
| TDP | 200 w |
| Recommended PSU | 550 w |

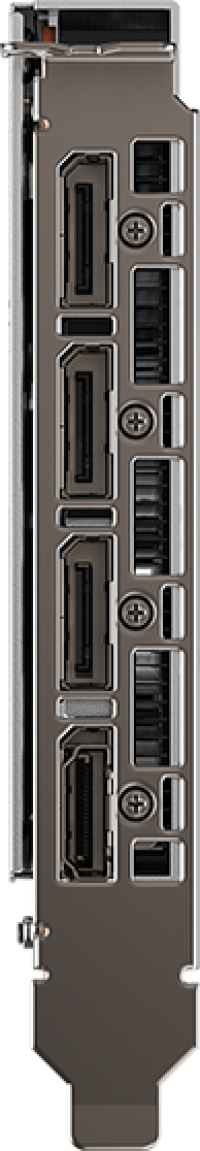

| DisplayPort | 4 2.1 |
| Mini DisplayPort | 4 |
| Slots | 1 2 |
| Length | 190 mm 167 mm |
| Height | 112 mm 69 mm |
| Width | 19 mm 40 mm |
| Weight | 566 g |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2400 MHz | 2.1 | 289 mm | 120 mm | 42 mm | ||
| 2400 MHz | 2.1 | 289 mm | 120 mm | 42 mm | ||
 $713.00 | 2400 MHz | 2 | 271 mm | 112 mm | 39 mm | |
| $644.00 | 2400 MHz | 1 | 190 mm | 112 mm | 19 mm |
