| Name | DG2-512 |
| Foundry | TSMC |
| Process Node | 6 nm |
| Transistors | 21700 million |
| Die Size | 406.0 mm² |
| Density | 53.4 /mm² |
| Cores | 4096 |
| TMUs | 256 |
| ROPs | 128 |
| Tensor Cores | 512 |
| RT Cores | 32 |
| Technology | GDDR6 |
| Size | 16 GB |
| Bus | 256 bit |
| Bandwidth | 512.0 GB/s |
| Speed | 16.0 Gbps |
| Base clock | 2100 MHz |
| Boost clock | 2200 MHz 2400 MHz |
| Memory clock | 2000 MHz |
| 6-pin | 1 |
| 8-pin | 1 |
| TDP | 225 w |
| Recommended PSU | 700 w 550 w |

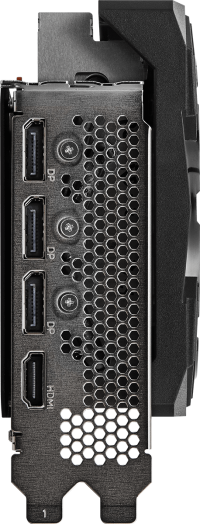

| DisplayPort | 3 2.0 |
| HDMI | 1 2.1 |
| Slots | 2.8 |
| Length | 305 mm |
| Height | 131 mm |
| Width | 56 mm |
| Weight | 1146 g |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2400 MHz | 2.4 | 267 mm | 130 mm | 48 mm | ||
| 2300 MHz -4.2% | 2.6 | 281 mm | 131 mm | 51 mm | ||
| 2200 MHz -8.3% | 2.8 | 305 mm | 131 mm | 56 mm | ||
| 2150 MHz -10.4% | 2.4 | 271 mm | 132 mm | 48 mm | ||
| 2300 MHz -4.2% | 2.6 | 281 mm | 131 mm | 51 mm | ||
 $452.00 | 2200 MHz -8.3% | 117.8 mm | ||||
| 2300 MHz -4.2% | 2.5 | 305.5 mm | 103.4 mm | 50.4 mm | ||
| 2400 MHz |
