| Platform | Consumer |
| Architecture | Alchemist |
| Interface | PCIe 4.0 x16 |
| Name | DG2-512 |
| Foundry | TSMC |
| Process Node | 6 nm |
| Transistors | 21700 million |
| Die Size | 406.0 mm² |
| Density | 53.4 /mm² |
| Cores | 3584 |
| TMUs | 224 |
| ROPs | 112 |
| RT Cores | 28 |
| Technology | GDDR6 |
| Size | 8 GB |
| Bus | 256 bit |
| Bandwidth | 512.0 GB/s |
| Speed | 16.0 Gbps |
| Base clock | 2050 MHz |
| Boost clock | 2200 MHz 2400 MHz |
| Memory clock | 2000 MHz |
| 8-pin | 2 |
| TDP | 225 w |
| Recommended PSU | 650 w 550 w |

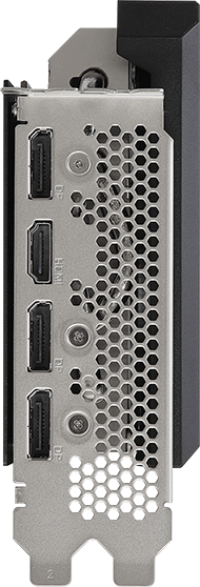

| DisplayPort | 3 2.0 |
| HDMI | 1 2.0b |
| Slots | 2.4 |
| Length | 267 mm |
| Height | 130 mm |
| Width | 48 mm |
| Weight | 820 g |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2200 MHz -8.3% | 2.1 | 222 mm | 101 mm | 40.9 mm | ||
 $374.00 | 2050 MHz -14.6% | |||||
| 2200 MHz -8.3% | 2.5 | 305.5 mm | 103.4 mm | 50.4 mm | ||
| $260.00 | 2200 MHz -8.3% | 2 | 267 mm | |||
| 2200 MHz -8.3% | 2.5 | 281 mm | 131 mm | 51 mm | ||
| 2200 MHz -8.3% | 2.4 | 267 mm | 130 mm | 48 mm |
