GPU
| Core | |
|---|---|
| Name | Navi 32 |
| Foundry | TSMC |
| Process Node | 5 nm |
| Transistors | 28100 million |
| Die Size | 346.0 mm² |
| Density | 81.2 /mm² |
| GPU Core Config | |
|---|---|
| Cores | 3456 |
| TMUs | 216 |
| ROPs | 96 |
| RT Cores | 54 |
| Memory | |
|---|---|
| Technology | GDDR6 |
| Size | 12 GB |
| Bus | 192 bit |
| Bandwidth | 432.0 GB/s |
| Speed | 18.0 Gbps |
| Clocks | |
|---|---|
| Base clock | 1435 MHz |
| Game Clock | 2276 MHz 2171 MHz |
| Boost clock | 2599 MHz 2544 MHz |
| Memory clock | 2250 MHz |
| Power | |
|---|---|
| 8-pin | 2 |
| TDP | 245 w |
| Recommended PSU | 700 w 550 w |

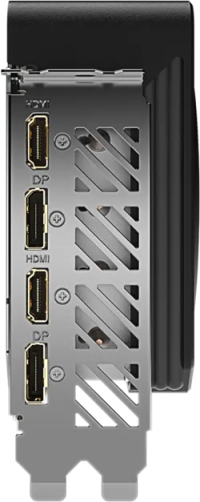

| Display | |
|---|---|
| DisplayPort | 2 2.1 |
| HDMI | 2 2.1 |
| Dimensions | |
|---|---|
| Slots | 2.8 |
| Length | 302 mm |
| Height | 130 mm |
| Width | 56 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
 $799.99 | 2599 MHz +2.2% | 2.6 | 335 mm | 130 mm | 52 mm | |
| 2599 MHz +2.2% | 2.5 | 279.9 mm | 133.9 mm | 49.3 mm | ||
| $409.97 | 2584 MHz +1.6% | 2.6 | 267 mm | 130 mm | 51 mm | |
| 2544 MHz | 2.6 | 283 mm | 125 mm | 52 mm | ||
 $456.00 | 2599 MHz +2.2% | 3 | 319.8 mm | 150.9 mm | 59.2 mm | |
| $544.99 | 2599 MHz +2.2% | 2.8 | 302 mm | 130 mm | 56 mm |
