ASRock Radeon RX 6750 XT Challenger Pro OC - Prices, specifications and information

GPUs

AMD RX 6750 XT

ASRock Radeon RX 6750 XT Challenger Pro OC

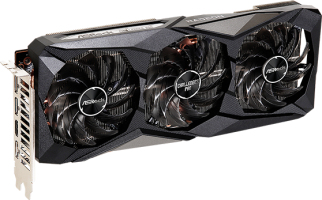

ASRock Radeon RX 6750 XT Challenger Pro OC - Side

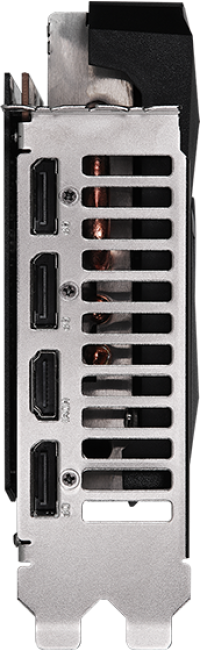

ASRock Radeon RX 6750 XT Challenger Pro OC - Outputs

AMD RX 6750 XT
ASRock Radeon RX 6750 XT Challenger Pro OC
RX6750XT CLP 12GO

Specifications

Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next generationRX 7000
InterfacePCIe 4.0 x16
Core
NameNavi 22
FoundryTSMC
Process Node7 nm
Transistors17200 million
Die Size335.0 mm²
Density51.3 /mm²
GPU Core Config
Cores2560
TMUs160
ROPs64
RT Cores40
Memory
TechnologyGDDR6
Size12 GB
Bus192 bit
Infinity Cache96 MB
Bandwidth432.0 GB/s
Speed18.0 Gbps

Clocks
Base clock2235 MHz 2150 MHz
Game Clock2512 MHz 2495 MHz
Boost clock2618 MHz 2600 MHz
Memory clock2250 MHz
Power
8-pin2
TDP250 w
Recommended PSU700 w 600 w
Display
DisplayPort3 1.4
HDMI1 2.1
Dimensions
Slots2.3 2
Length303 mm
Height131 mm
Width45 mm
Weight890 g

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
ASRock Radeon RX 6750 XT Challenger Pro OC RX6750XT CLP 12GO		2618 MHz +0.7%	2.3	303 mm	131 mm	45 mm

Platform	Consumer
Architecture	RDNA2
Generation	RX 6000
Previous Gen	RX 5000
Next generation	RX 7000
Interface	PCIe 4.0 x16

Name	Navi 22
Foundry	TSMC
Process Node	7 nm
Transistors	17200 million
Die Size	335.0 mm²
Density	51.3 /mm²

Technology	GDDR6
Size	12 GB
Bus	192 bit
Infinity Cache	96 MB
Bandwidth	432.0 GB/s
Speed	18.0 Gbps

Base clock	2235 MHz 2150 MHz
Game Clock	2512 MHz 2495 MHz
Boost clock	2618 MHz 2600 MHz
Memory clock	2250 MHz

Cores	2560
TMUs	160
ROPs	64
RT Cores	40

8-pin	2
TDP	250 w
Recommended PSU	700 w 600 w

DisplayPort	3 1.4
HDMI	1 2.1

Slots	2.3 2
Length	303 mm
Height	131 mm
Width	45 mm
Weight	890 g
