| Name | Navi 23 |
| Foundry | TSMC |
| Process Node | 7 nm |
| Transistors | 11060 million |
| Die Size | 237.0 mm² |
| Density | 46.7 /mm² |
| Cores | 2048 |
| TMUs | 128 |
| ROPs | 64 |
| RT Cores | 32 |
| Technology | GDDR6 |
| Size | 8 GB |
| Bus | 128 bit |
| Infinity Cache | 32 MB |
| Bandwidth | 280.3 GB/s |
| Speed | 17.5 Gbps |
| Base clock | 2055 MHz |
| Game Clock | 2523 MHz 2410 MHz |
| Boost clock | 2694 MHz 2635 MHz |
| Memory clock | 2190 MHz |
| 8-pin | 1 |
| TDP | 175 w 176 w |
| Recommended PSU | 500 w 450 w |

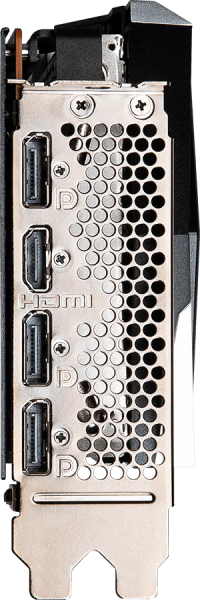

| DisplayPort | 3 1.4a |
| HDMI | 1 2.1 |
| Slots | 2.6 2 |
| Length | 278 mm |
| Height | 130 mm |
| Width | 51 mm |
| Weight | 894 g |
| GPUs▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2635 MHz | 2.1 | 282 mm | 113 mm | 41 mm | ||
| 2635 MHz | 2.1 | 241 mm | 131 mm | 41 mm | ||
| $401.00 | 2694 MHz +2.2% | 2.6 | 278 mm | 130 mm | 51 mm | |
| 2694 MHz +2.2% | 2.5 | 260 mm | 130 mm | 57.6 mm |
