Sapphire PULSE Radeon RX 6500 XT - Prices, specifications and information

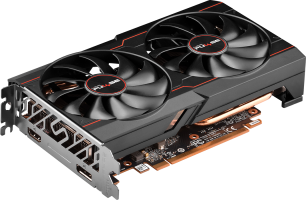

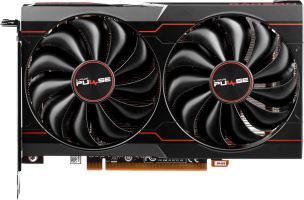

Sapphire PULSE Radeon RX 6500 XT

AMD RX 6500 XT
Sapphire PULSE Radeon RX 6500 XT
11314-01-20G

Specifications

Information
PlatformConsumer
ArchitectureRDNA2
GenerationRX 6000
Previous GenRX 5000
Next generationRX 7000
InterfacePCIe 4.0 x4
Core
NameNavi 24
FoundryTSMC
Process Node6 nm
Transistors5400 million
Die Size107.0 mm²
Density50.5 /mm²
GPU Core Config
Cores1024
TMUs64
ROPs32
RT Cores16
Memory
TechnologyGDDR6
Size4 GB
Bus64 bit
Infinity Cache16 MB
Bandwidth143.9 GB/s
Speed18.0 Gbps

Clocks
Base clock2310 MHz
Game Clock2685 MHz 2610 MHz
Boost clock2825 MHz 2815 MHz
Memory clock2248 MHz
Power
6-pin1
TDP130 w 107 w
Recommended PSU400 w 300 w
Display
DisplayPort1
HDMI1
Dimensions
Slots2
Length194 mm
Height107 mm
Width40 mm

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
Sapphire PULSE AMD Radeon RX 6500 XT 11314-08-20G		2855 MHz +1.4%	2	194 mm	107 mm	40 mm
Lenovo Radeon RX 6500 XT 4X61N96915	$352.00	2815 MHz
ASRock Radeon RX 6500 XT Phantom Gaming D OC RX6500XT PGD 4GO		2820 MHz +0.2%	2.1	240 mm	129 mm	42 mm
PowerColor AMD Radeon RX 6500 XT ITX AXRX 6500XT 4GBD6-DH		2815 MHz	2	165 mm	125 mm	40 mm
Sapphire PULSE Radeon RX 6500 XT 11314-01-20G		2825 MHz +0.4%	2	194 mm	107 mm	40 mm

Platform	Consumer
Architecture	RDNA2
Generation	RX 6000
Previous Gen	RX 5000
Next generation	RX 7000
Interface	PCIe 4.0 x4

Name	Navi 24
Foundry	TSMC
Process Node	6 nm
Transistors	5400 million
Die Size	107.0 mm²
Density	50.5 /mm²

Technology	GDDR6
Size	4 GB
Bus	64 bit
Infinity Cache	16 MB
Bandwidth	143.9 GB/s
Speed	18.0 Gbps

Base clock	2310 MHz
Game Clock	2685 MHz 2610 MHz
Boost clock	2825 MHz 2815 MHz
Memory clock	2248 MHz

Cores	1024
TMUs	64
ROPs	32
RT Cores	16

6-pin	1
TDP	130 w 107 w
Recommended PSU	400 w 300 w

DisplayPort	1
HDMI	1

Slots	2
Length	194 mm
Height	107 mm
Width	40 mm
