GPU
| Platform | Consumer |
| Architecture | GCN 1.0 |
| Generation | Southern Islands |
| Previous Gen | Northern Islands |
| Next generation | Sea Islands |
| Interface | PCIe 3.0 x16 |
| Name | Tahiti |
| Foundry | TSMC |
| Process Node | 28 nm |
| Transistors | 4313 million |
| Die Size | 352.0 mm² |
| Density | 12.3 /mm² |
| Cores | 2048 |
| TMUs | 128 |
| Compute Units | 32 |
| ROPs | 32 |
| Technology | GDDR5 |
| Size | 3 GB |
| Bus | 384 bit |
| Bandwidth | 264.0 GB/s |
| Speed | 5.5 Gbps |
| Base clock | 1070 MHz 925 MHz |
| Boost clock | 1150 MHz |
| Memory clock | 1375 MHz |
| 6-pin | 1 |
| 8-pin | 1 |
| TDP | 250 w |
| Recommended PSU | 600 w |

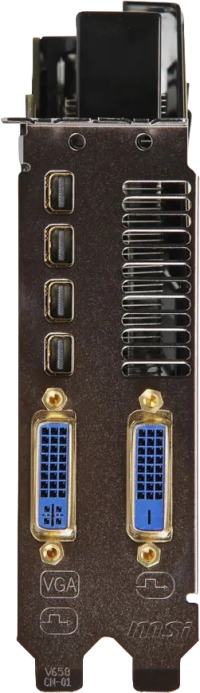

| HDMI | 1 1.4 |
| Mini DisplayPort | 4 2 |
| DVI | 1 |
| DVI-D SL | 1 |
| DVI-I | 1 |
| Slots | 2 |
| Length | 305 mm 275 mm |
| Height | 135 mm 111 mm |
| Width | 40 mm 38 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 1100 MHz -4.3% | 3 | 279 mm | ||||
| 1050 MHz -8.7% | 3 | 279 mm | ||||
| 1150 MHz | 2 | 305 mm | 135 mm | 40 mm |
