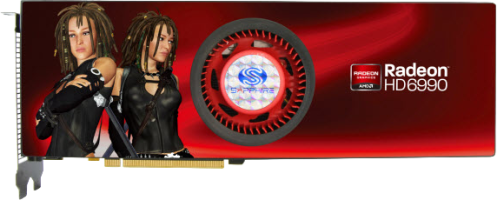

Name: Sapphire Radeon HD 6990
Brand: Sapphire
SKU: 100310SR

GPUs

AMD Radeon HD 6990

Sapphire Radeon HD 6990

AMD Radeon HD 6990
Sapphire Radeon HD 6990
100310SR
Specifications
Models
No reviews yet. Be the first to share your thoughts!
 Log in to write a review.

Specifications

Information
PlatformConsumer
ArchitectureTeraScale 3
GenerationNorthern Islands
Previous GenEvergreen
Next generationSouthern Islands
InterfacePCIe 2.0 x16
Core
NameAntilles x2
FoundryTSMC
Process Node40 nm
Transistors3 million
Die Size389.0 mm²
Density0.0 /mm²
GPU Core Config
Cores1536 x2
Compute Units24 x2
TMUs96 x2
ROPs32 x2
Memory
TechnologyGDDR5
Size2 GB x2
Bus256 bit x2
Bandwidth160.0 GB/s x2
Speed5.0 Gbps

Clocks
Base clock830 MHz
Memory clock1250 MHz
Power
8-pin2
TDP375 w
Recommended PSU750 w
Display
Mini DisplayPort4
DVI1
Dimensions
Slots2
Length310 mm
Height115 mm
Width40 mm

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
MSI Radeon HD 6990 R6990-4PD4GD5			2	310 mm	115 mm	40 mm
Sapphire Radeon HD 6990 100310SR			2	310 mm	115 mm	40 mm

Platform	Consumer
Architecture	TeraScale 3
Generation	Northern Islands
Previous Gen	Evergreen
Next generation	Southern Islands
Interface	PCIe 2.0 x16

Name	Antilles x2
Foundry	TSMC
Process Node	40 nm
Transistors	3 million
Die Size	389.0 mm²
Density	0.0 /mm²

Technology	GDDR5
Size	2 GB x2
Bus	256 bit x2
Bandwidth	160.0 GB/s x2
Speed	5.0 Gbps

Cores	1536 x2
Compute Units	24 x2
TMUs	96 x2
ROPs	32 x2

Base clock	830 MHz
Memory clock	1250 MHz

8-pin	2
TDP	375 w
Recommended PSU	750 w

Mini DisplayPort	4
DVI	1
