GPU
| Platform | Consumer |
| Architecture | TeraScale 3 |
| Generation | Northern Islands |
| Previous Gen | Evergreen |
| Next generation | Southern Islands |
| Interface | PCIe 2.0 x16 |
| Name | Cayman |
| Foundry | TSMC |
| Process Node | 40 nm |
| Transistors | 2640 million |
| Die Size | 389.0 mm² |
| Density | 6.8 /mm² |
| Cores | 1536 |
| Compute Units | 24 |
| TMUs | 96 |
| ROPs | 32 |
| Technology | GDDR5 |
| Size | 2 GB |
| Bus | 256 bit |
| Bandwidth | 176.0 GB/s |
| Speed | 5.5 Gbps |
| Base clock | 940 MHz 880 MHz |
| Memory clock | 1375 MHz |
| 6-pin | 1 |
| 8-pin | 1 |
| TDP | 250 w |
| Recommended PSU | 600 w |

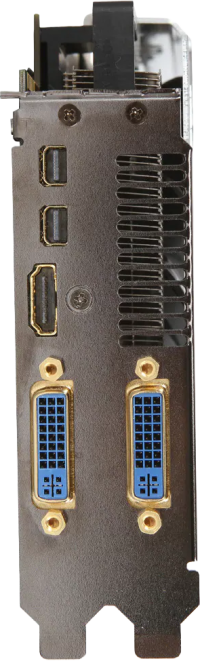

| HDMI | 1 1.4 |
| Mini DisplayPort | 2 |
| DVI-D DL | 1 |
| DVI-D SL | 1 |
| Slots | 2 2.1 |
| Length | 310 mm 286 mm |
| Height | 127 mm 126 mm |
| Width | 40 mm 42 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
| 2 | 310 mm | 127 mm | 40 mm |
