AMD Radeon PRO W7500 - Prices, specifications and information

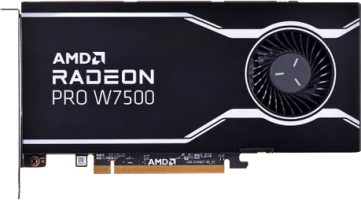

AMD Radeon PRO W7500

Prices, specifications and information

GPU

Featuring 250+ GPU-models — And growing.

GPUs > AMD Radeon PRO W7500

AMD Radeon PRO W7500

Radeon PRO W7500 is a workstation-grade GPU from amd\'s Radeon Pro Navi series, built on the RDNA3 architecture using the Navi 33 chip. Equipped with 8 GB of GDDR6 memory on a 128-bit bus, it delivers 256.0 GB/s of bandwidth at 16.0 Gbps.

Information
PlatformWorkstation
ArchitectureRDNA3
GenerationRadeon Pro Navi
Previous GenRadeon Pro Vega
InterfacePCIe 4.0 x8
Core
NameNavi 33
FoundryTSMC
Process Node6 nm
Transistors13300 million
Die Size204.0 mm²
Density65.2 /mm²
GPU Core Config
Cores1792
TMUs112
ROPs64
RT Cores28
Memory
TechnologyGDDR6
Size8 GB
Bus128 bit
Bandwidth256.0 GB/s
Speed16.0 Gbps

Information
Platform	Workstation
Architecture	RDNA3
Generation	Radeon Pro Navi
Previous Gen	Radeon Pro Vega
Interface	PCIe 4.0 x8

Core
Name	Navi 33
Foundry	TSMC
Process Node	6 nm
Transistors	13300 million
Die Size	204.0 mm²
Density	65.2 /mm²

GPU Core Config
Cores	1792
TMUs	112
ROPs	64
RT Cores	28

Memory
Technology	GDDR6
Size	8 GB
Bus	128 bit
Bandwidth	256.0 GB/s
Speed	16.0 Gbps

Clocks
Base clock1500 MHz
Boost clock1700 MHz
Memory clock2000 MHz
Power
TDP70 w
Recommended PSU250 w
Display
DisplayPort4 2.1
Dimensions
Slots1
Length216 mm
Height115 mm
Width20 mm

Clocks
Base clock	1500 MHz
Boost clock	1700 MHz
Memory clock	2000 MHz

Power
TDP	70 w
Recommended PSU	250 w

Display
DisplayPort	4 2.1

Dimensions
Slots	1
Length	216 mm
Height	115 mm
Width	20 mm
