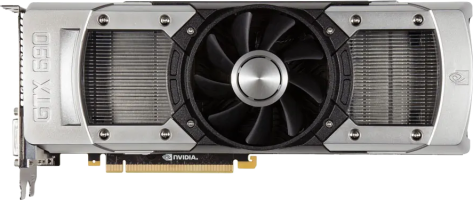

NVIDIA GTX 690

NVIDIA GTX 690

GTX 690 is a consumer-grade GPU from NVIDIA\'s GeForce 600 series, built on the Kepler architecture using the GK104 chip. Equipped with 2 GB of GDDR5 memory on a 256-bit bus, it delivers 192.3 GB/s of bandwidth at 6.0 Gbps.

Specifications

Information
PlatformConsumer
ArchitectureKepler
GenerationGeForce 600
Previous GenGeForce 500
Next generationGeForce 700
InterfacePCIe 3.0 x16
Core
NameGK104 x2
FoundryTSMC
Process Node28 nm
Transistors3540 million
Die Size294.0 mm²
Density12.0 /mm²
GPU Core Config
Cores1536 x2
TMUs128 x2
ROPs32 x2
Memory
TechnologyGDDR5
Size2 GB x2
Bus256 bit x2
Bandwidth192.3 GB/s x2
Speed6.0 Gbps

Clocks
Base clock915 MHz
Boost clock1019 MHz
Memory clock1502 MHz
Power
8-pin2
TDP300 w
Recommended PSU700 w

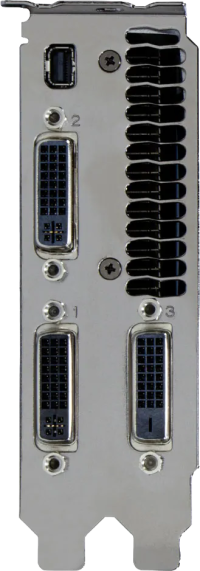

Display
Mini DisplayPort1
DVI3
Dimensions
Slots2
Length279 mm
Height111 mm
Width38 mm

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
MSI GeForce GTX 690 N690GTX-P3D4GD5		1019 MHz	2	280 mm	111 mm	34 mm

Platform	Consumer
Architecture	Kepler
Generation	GeForce 600
Previous Gen	GeForce 500
Next generation	GeForce 700
Interface	PCIe 3.0 x16

Name	GK104 x2
Foundry	TSMC
Process Node	28 nm
Transistors	3540 million
Die Size	294.0 mm²
Density	12.0 /mm²

Technology	GDDR5
Size	2 GB x2
Bus	256 bit x2
Bandwidth	192.3 GB/s x2
Speed	6.0 Gbps

Cores	1536 x2
TMUs	128 x2
ROPs	32 x2

8-pin	2
TDP	300 w
Recommended PSU	700 w

Mini DisplayPort	1
DVI	3

Slots	2
Length	279 mm
Height	111 mm
Width	38 mm
