GPU
| Name | Navi 31 |
| Foundry | TSMC |
| Process Node | 5 nm |
| Transistors | 57700 million |
| Die Size | 529.0 mm² |
| Density | 109.1 /mm² |
| Cores | 5375 |
| Compute Units | 84 |
| TMUs | 336 |
| ROPs | 192 |
| RT Cores | 84 |
| Technology | GDDR6 |
| Size | 20 GB |
| Bus | 320 bit |
| Infinity Cache | 80 MB |
| Bandwidth | 800.0 GB/s |
| Speed | 20.0 Gbps |
| Base clock | 1500 MHz |
| Game Clock | 2000 MHz |
| Boost clock | 2400 MHz 2394 MHz |
| Memory clock | 2500 MHz |
| 8-pin | 2 |
| TDP | 300 w |
| Recommended PSU | 750 w 700 w |

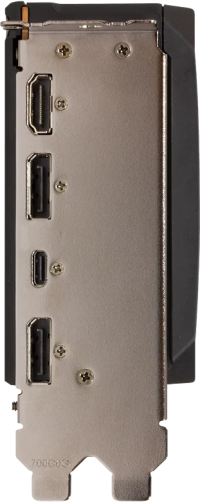

| DisplayPort | 3 2.1 / 1.4 |
| HDMI | 1 2.1 |
| Slots | 2.6 |
| Length | 276.4 mm |
| Height | 112.7 mm |
| Width | 51.25 mm |
| GPU▲ | Price▲ | Boost clock▲ | Slots▲ | Length▲ | Height▲ | Width▲ |
|---|---|---|---|---|---|---|
 $1,099.87 | 2535 MHz +5.9% | 2.8 | 344 mm | 128 mm | 55 mm | |
| 2400 MHz +0.3% | 2.6 | 276.4 mm | 112.6 mm | 51.2 mm | ||
| $1,245.00 | 2500 MHz +4.4% | 3.1 | 320 mm | 118.5 mm | 62 mm | |
| 2400 MHz +0.3% | 2.6 | 276.4 mm | 112.7 mm | 51.25 mm | ||
| 2535 MHz +5.9% | 3.7 | 352.9 mm | 158.2 mm | 72.6 mm | ||
| $1,398.00 | 2450 MHz +2.3% | 2.9 | 330 mm | 140 mm | 57.6 mm |
