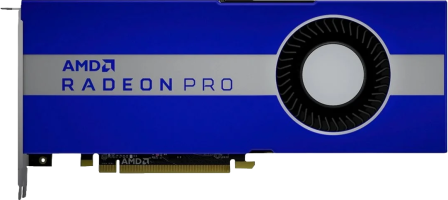

Name: AMD Radeon PRO W5700
Brand: AMD
SKU: 100-506085
Availability: OutOfStock

GPUs

AMD Radeon PRO W5700

AMD Radeon PRO W5700
AMD Radeon PRO W5700
100-506085
Historical prices
Specifications
Models
$933.00

Historical prices

Specifications

Information
PlatformWorkstation
ArchitectureRDNA
GenerationRadeon Pro Navi
Previous GenRadeon Pro Vega
InterfacePCIe 4.0 x16
Core
NameNavi 10
FoundryTSMC
Process Node7 nm
Transistors10300 million
Die Size251.0 mm²
Density41.0 /mm²
Memory
TechnologyGDDR6
Size8 GB
Bus256 bit
Bandwidth448.0 GB/s
Speed14.0 Gbps
Clocks
Base clock1400 MHz
Boost clock1880 MHz
Memory clock1750 MHz

Power
6-pin1
8-pin1
TDP205 w
Recommended PSU600 w
Display
Mini DisplayPort5
USB Type-C1
Dimensions
Slots2
Length267 mm
Height111 mm
Width40 mm

Models

GPUs▲	Price▲	Boost clock▲	Slots▲	Length▲	Height▲	Width▲
AMD Radeon PRO W5700 100-506085	$933.00	1880 MHz

Platform	Workstation
Architecture	RDNA
Generation	Radeon Pro Navi
Previous Gen	Radeon Pro Vega
Interface	PCIe 4.0 x16

Name	Navi 10
Foundry	TSMC
Process Node	7 nm
Transistors	10300 million
Die Size	251.0 mm²
Density	41.0 /mm²

Technology	GDDR6
Size	8 GB
Bus	256 bit
Bandwidth	448.0 GB/s
Speed	14.0 Gbps

6-pin	1
8-pin	1
TDP	205 w
Recommended PSU	600 w

Mini DisplayPort	5
USB Type-C	1

Slots	2
Length	267 mm
Height	111 mm
Width	40 mm
